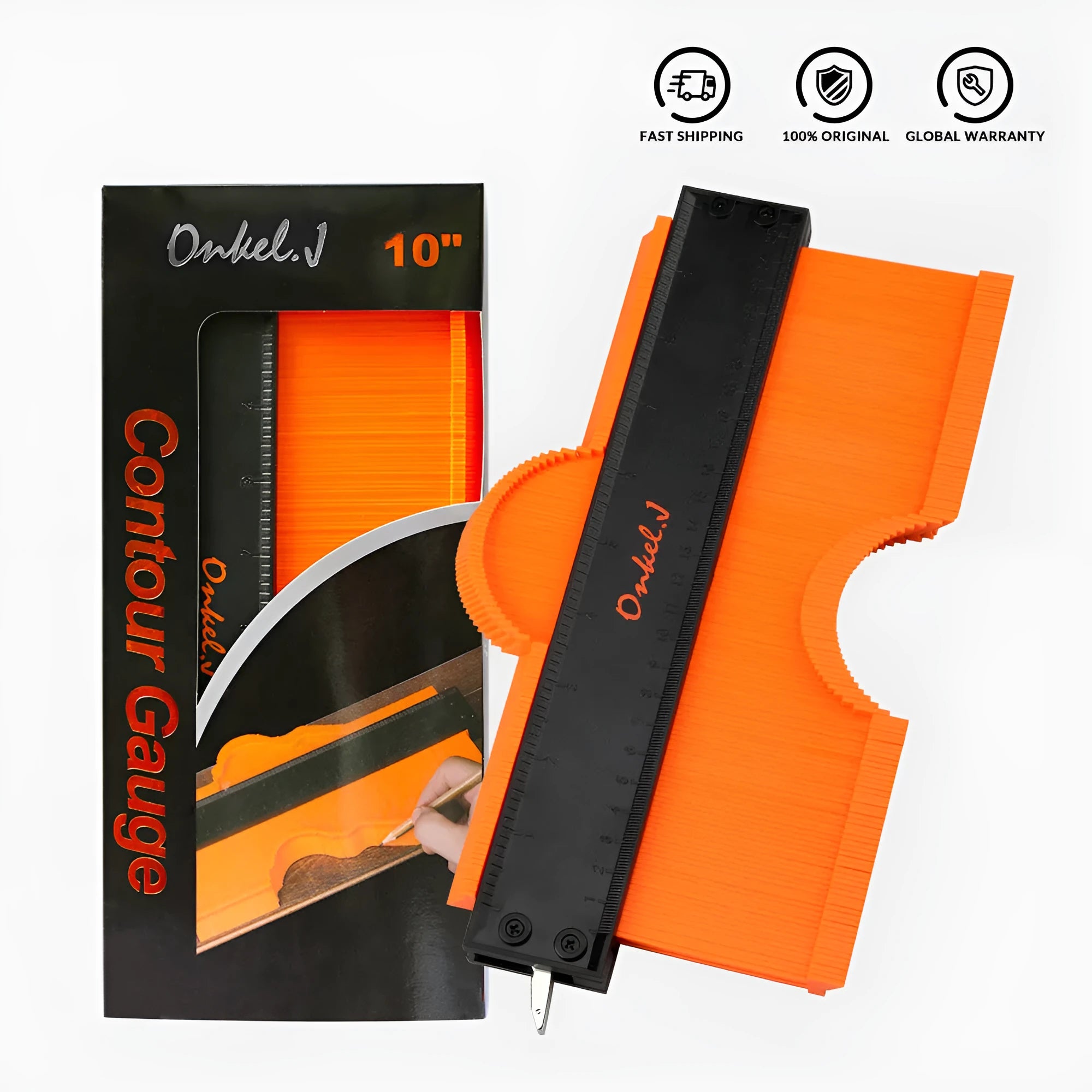

5 10 Inch Contour Gauge Duplicator for Precise Tile Cutting and Woodworking

When you need to measure irregular shapes like winding pipes, tiles, laminates, or automotive sheet metal, this contour gauge provides a reliable solution. It creates instant templates for marking precise cuts, eliminating the need for guesswork in woodworking, flooring, and car body repair. The durable ABS plastic and aluminium alloy construction ensure long-lasting use without rust, while the high-precision calibration delivers accurate measurements every time.

Features and Construction

This measuring tool is built for practical accuracy and ease of use. The design focuses on duplicating complex contours quickly and reliably.

Material and Build

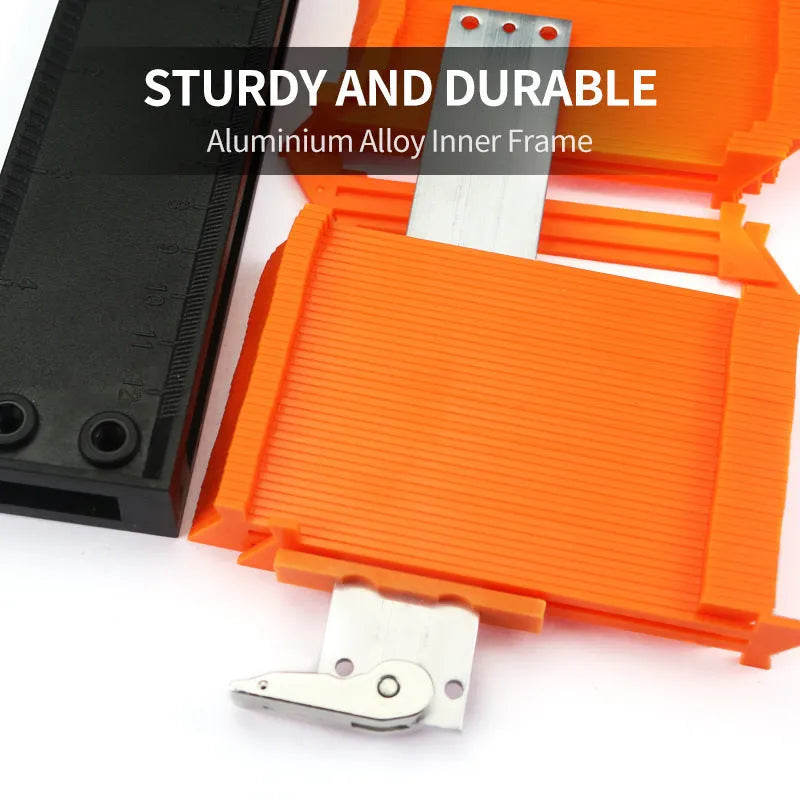

The gauge uses high-strength ABS plastic teeth that conform to the object shape without rusting. An aluminium alloy frame provides additional structural rigidity, making the tool light yet strong. The high-precision calibration achieves an accuracy of 0.01 mm, ideal for professional and DIY work.

Size and Practical Fit

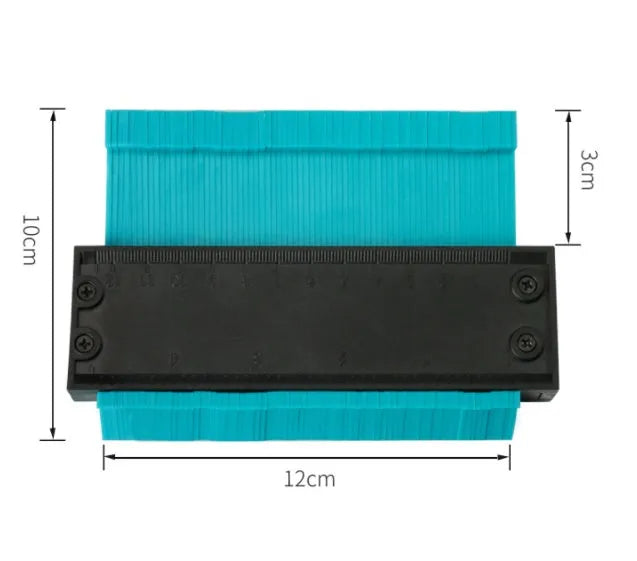

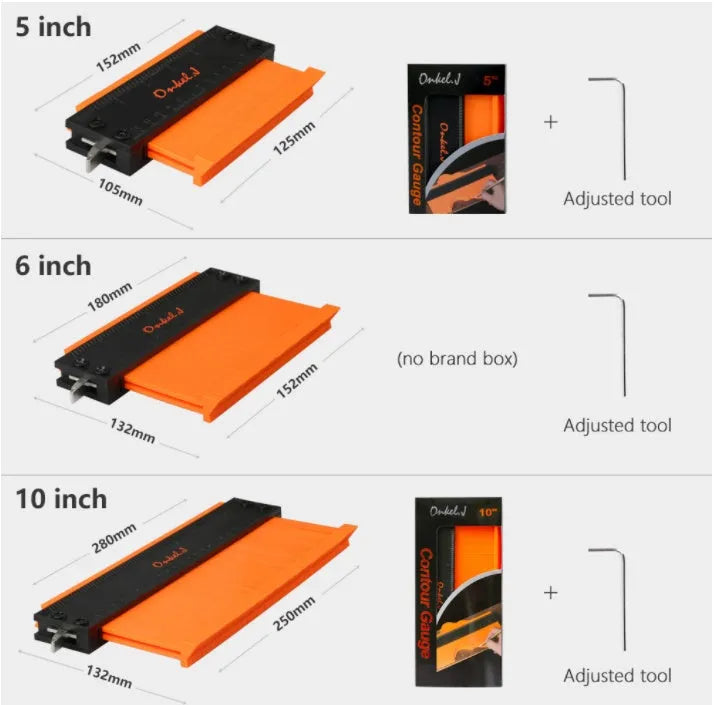

Choose between the 5-inch (approx. 12 x 10 x 3 cm) and 10-inch (approx. 25 x 10 x 3 cm) sizes to suit different job requirements. The compact 5-inch gauge works well for small tiles and narrow pipes, while the 10-inch version covers larger surfaces like laminates and mouldings. Both sizes have a measuring range of 0 to 250 mm.

Uses and Placement

This contour gauge is suited to multiple trades and hobbies where contour copying is required. It bypasses pipes, circular frames, ducts, and many other objects.

Event or Professional Use

For professionals in woodworking, automotive sheet metal, and tiling, the gauge speeds up template creation. It handles irregular curves on car body panels, stainless steel edges, and floor mouldings, reducing waste and rework.

Everyday Home Use

Home DIY enthusiasts can use it for cutting laminates, carpet fitting, and shaping tiles around pipes. The simple press-and-draw method makes it accessible even for beginners.

Benefits and Buying Value

This tool offers practical advantages for repetitive contour work without requiring specialised skills.

Reuse and Low Maintenance

Made from non-rusting ABS plastic, the gauge maintains its pattern and can be reused indefinitely. It requires no special care other than dry cleaning after use. The aluminium alloy frame resists corrosion, ensuring long service life.

Why Choose This Product

With 0.01 mm accuracy, a wide measuring range, and two size options, this contour duplicator meets precise measurement needs at a practical cost. It avoids invented claims by focusing on real features: instant templates, non-rust material, and compatibility with pipes, ducts, and circular frames.
