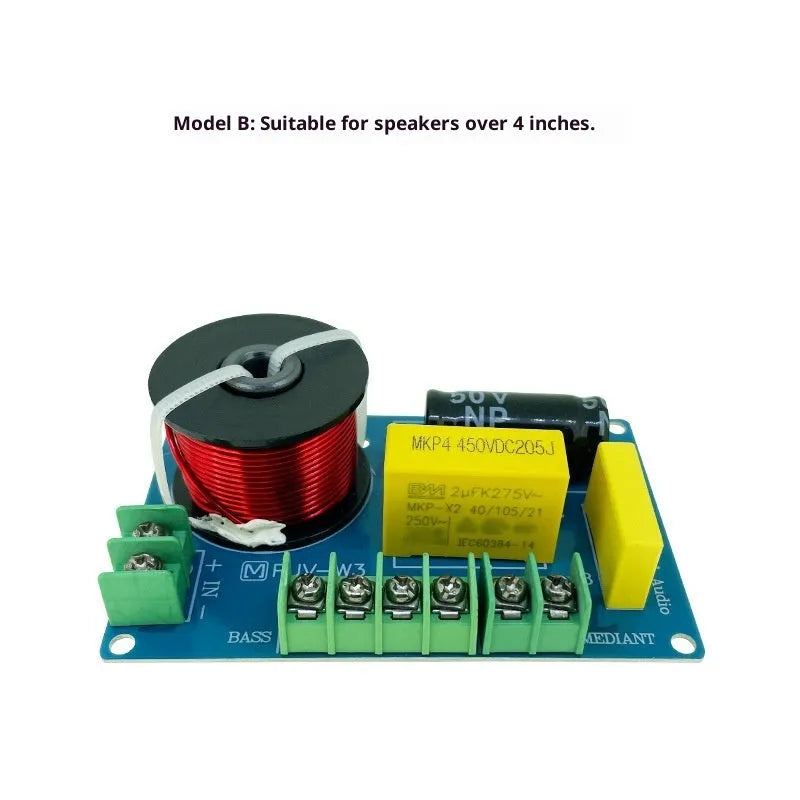

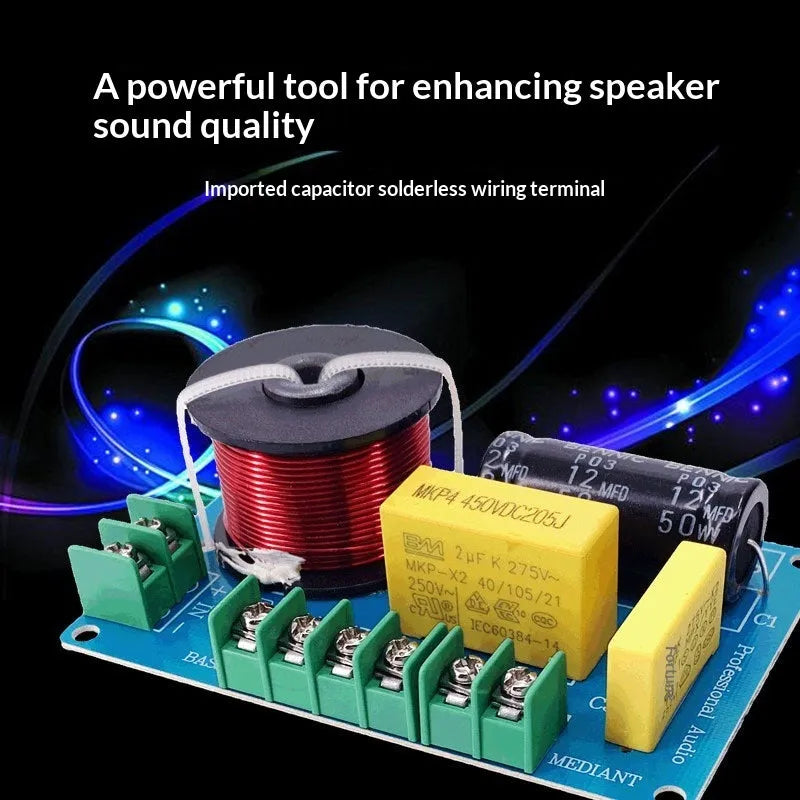

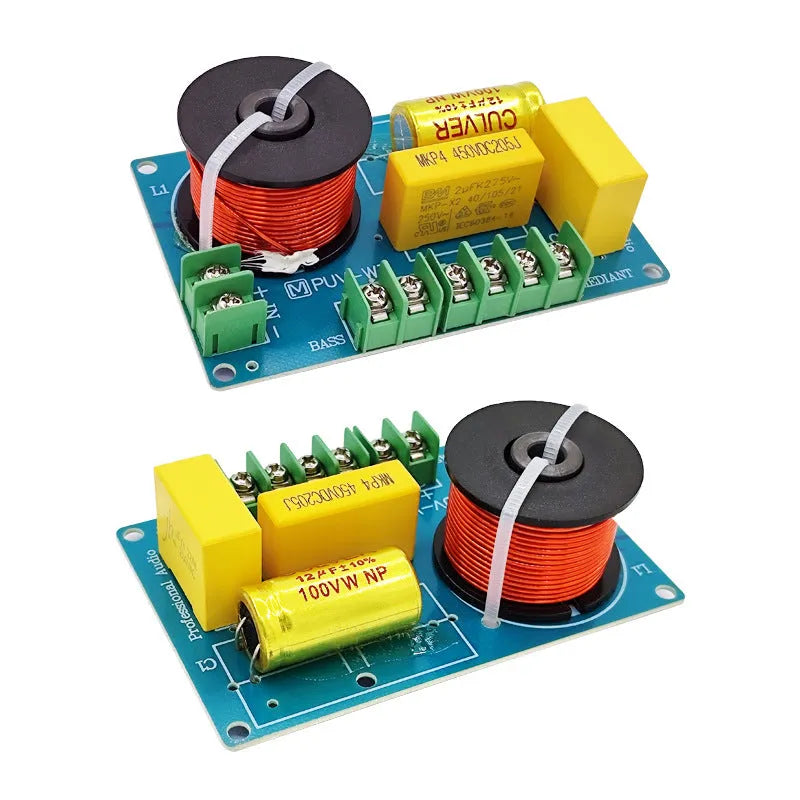

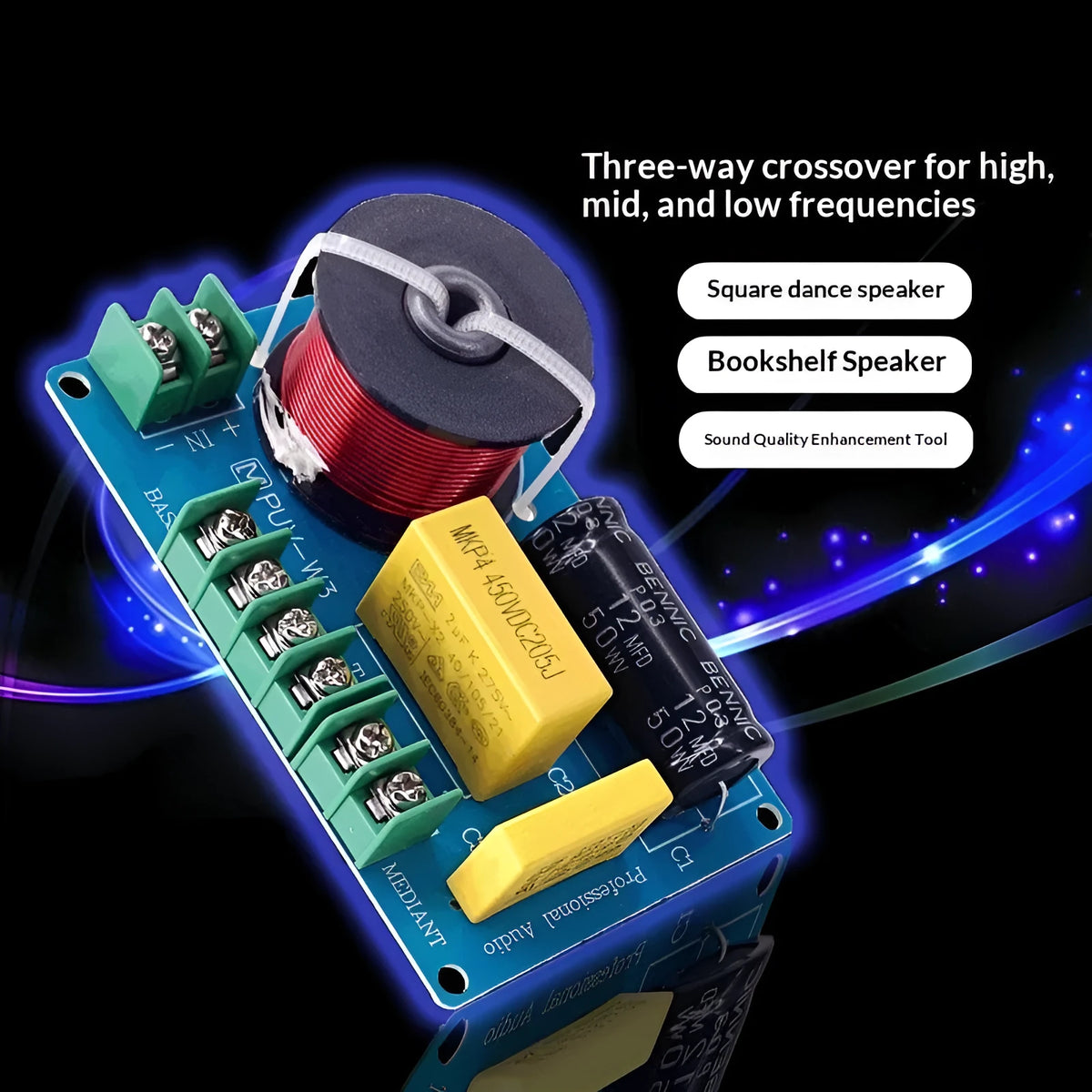

PUV-W3 Three-Way Bookshelf Speaker Crossover 200W 4-8 Ohm

This three-way bookshelf speaker crossover is a practical component for speaker repair, upgrade, or DIY audio projects. It separates high, mid, and low frequencies so that each driver receives the intended frequency band. The model PUV-W3 handles 200W and works with 4-8 ohm impedance. Its board measures 100mm x 65mm and weighs 108g per piece. Frequency division points are model-dependent: A model around 860Hz and 6000Hz, B model around 800Hz and 6000Hz, C model around 870Hz and 6000Hz, and D model around 850Hz and 6000Hz. Available specifications include PUV W3 C Model 10UF, PUV W3 Model A 12UF, and PUV W3 Model B 20UF.

Features and Construction

The crossover is built around a three-way design for high, mid, and low frequency separation. It is intended for bookshelf speaker applications and is supplied as a single unit. The source text does not specify the internal component materials, so the description stays with the stated electrical and physical details.

Material and Build

The source text does not list the materials used in the crossover. It is described as a three-way crossover with model PUV-W3, a power rating of 200W, and impedance of 4-8 ohms. The unit is compact at 100mm x 65mm and weighs 108g per piece. No further construction details are provided, so no additional material or durability claims are made here.

Size and Practical Fit

The board measures 100mm x 65mm, which is a compact footprint for fitting inside many bookshelf speaker cabinets. At 108g per piece, it adds minimal weight. These are the only dimensions given in the source text. The 4-8 ohm impedance and 200W rating are the key electrical figures to match with your speaker system before purchase.

Uses and Placement

This crossover is suited to replacing a faulty unit in a bookshelf speaker or to building a custom speaker project where three-way frequency separation is required. The frequency division points differ by model, so the correct version should be chosen to match the intended drivers and cabinet design.

Event or Professional Use

For professional audio work, the crossover can be used where a three-way bookshelf speaker requires high, mid, and low frequency separation. The 200W power handling and 4-8 ohm impedance are the stated figures. Model selection depends on the required frequency division points: A model around 860Hz and 6000Hz, B model around 800Hz and 6000Hz, C model around 870Hz and 6000Hz, or D model around 850Hz and 6000Hz.

Everyday Home Use

At home, this crossover can be used to repair or rebuild a bookshelf speaker that has stopped working correctly. It is a single unit, so one crossover is supplied per purchase. The compact 100mm x 65mm board and 108g weight make it straightforward to position inside a speaker cabinet. As with any crossover, it should be matched to the speaker drivers and impedance before installation.

Benefits and Buying Value

The main value of this product is its specific three-way crossover function with several model options. It allows the user to select a frequency division point that suits the speaker build, rather than using a generic part. The stated 200W rating, 4-8 ohm impedance, and compact dimensions are the practical details to consider.

Reuse and Low Maintenance

This is a replacement or build component, so its value comes from extending the working life of a bookshelf speaker or completing a DIY audio project. The source text does not provide maintenance instructions, so no specific care routine is given. The unit is supplied as one piece and should be handled according to standard electronic component practice.

Why Choose This Product

Choose this crossover if you need a three-way bookshelf speaker crossover with a 200W rating and 4-8 ohm impedance. It offers model options with different frequency division points and capacitor values, including PUV W3 C Model 10UF, PUV W3 Model A 12UF, and PUV W3 Model B 20UF. The board size is 100mm x 65mm and the net weight is 108g per piece. One crossover is included.
