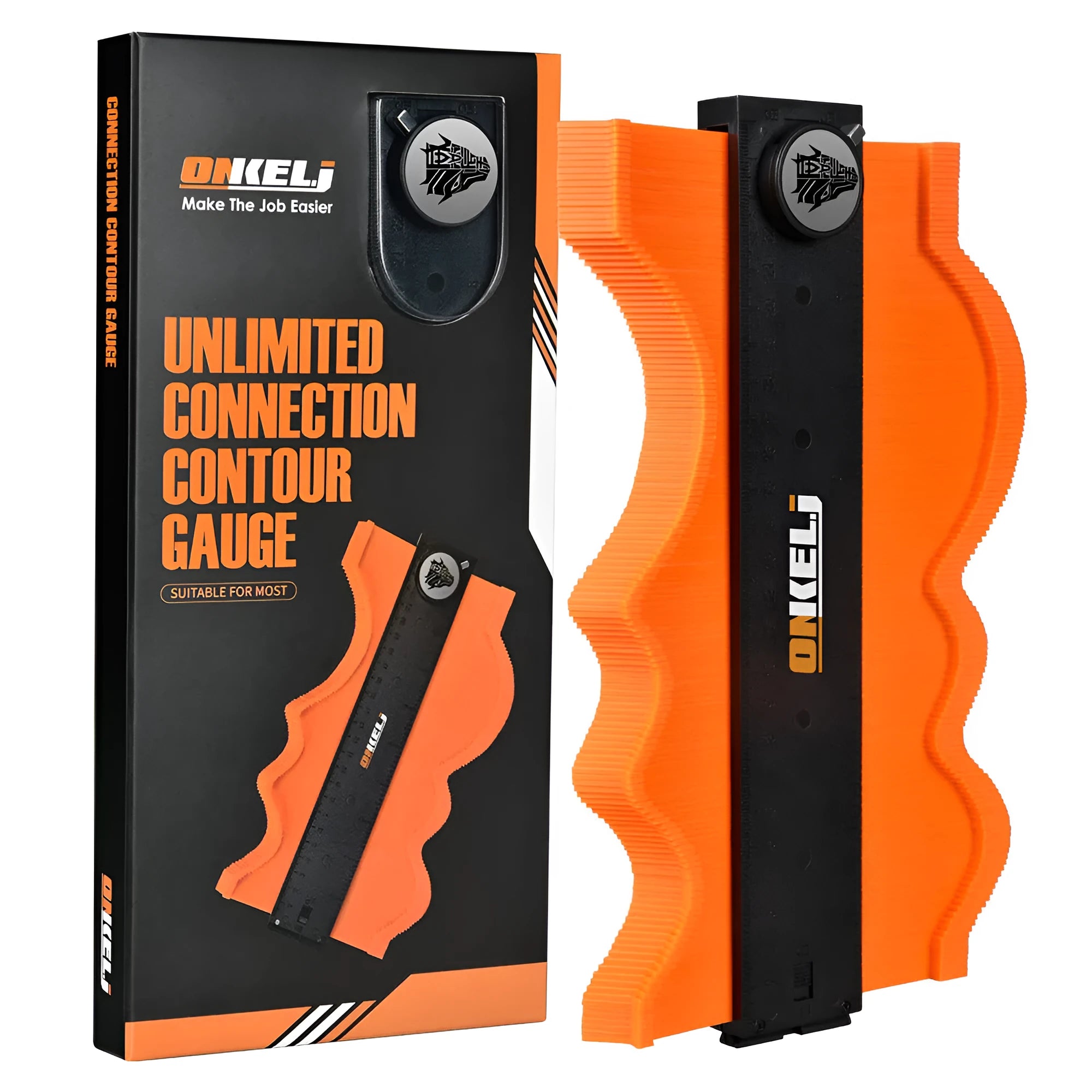

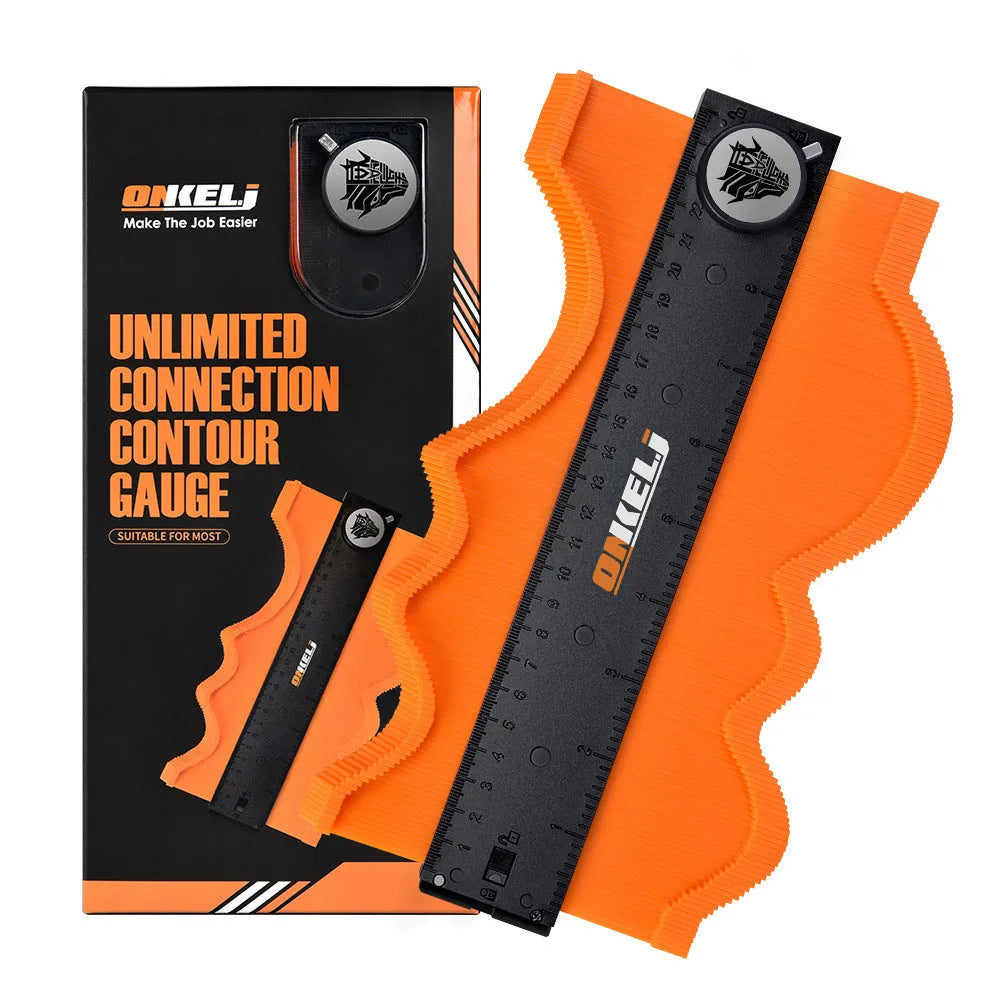

10-inch Contour Gauge with Locking Belt for Precise Shape Copying at 1mm Accuracy

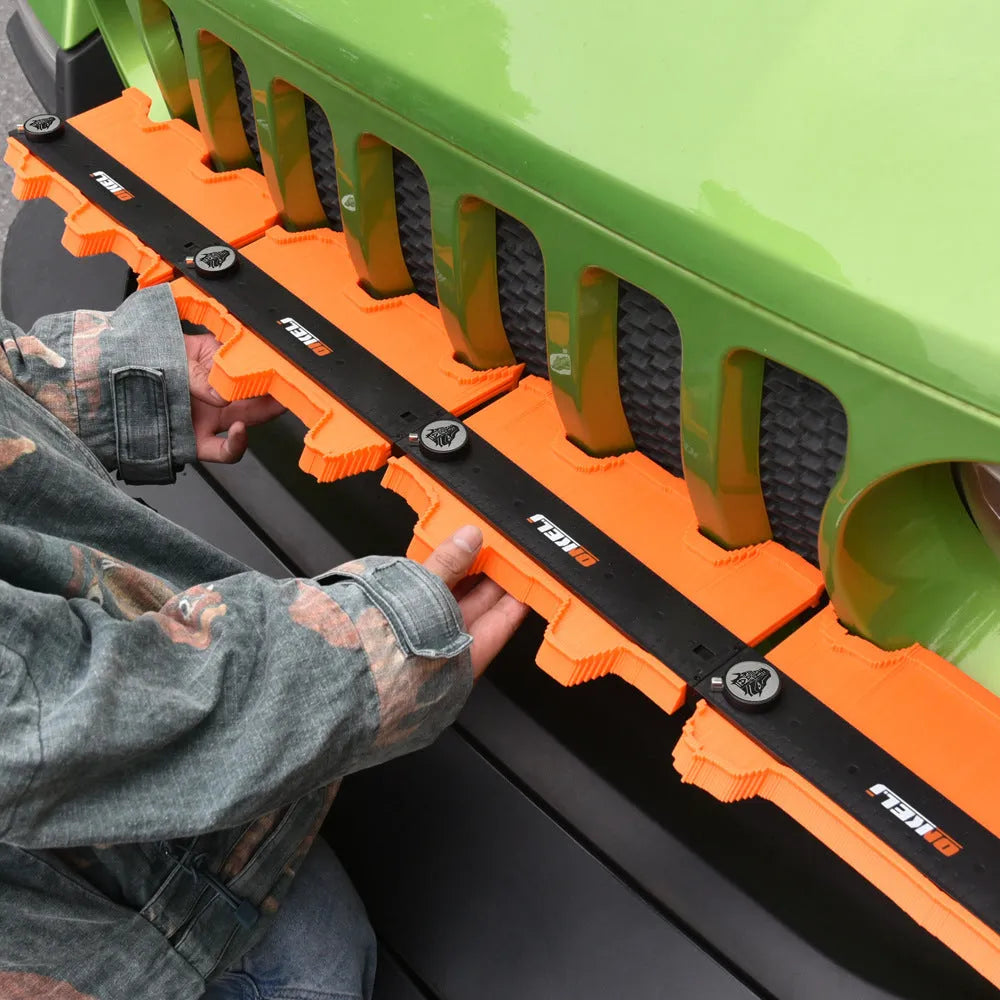

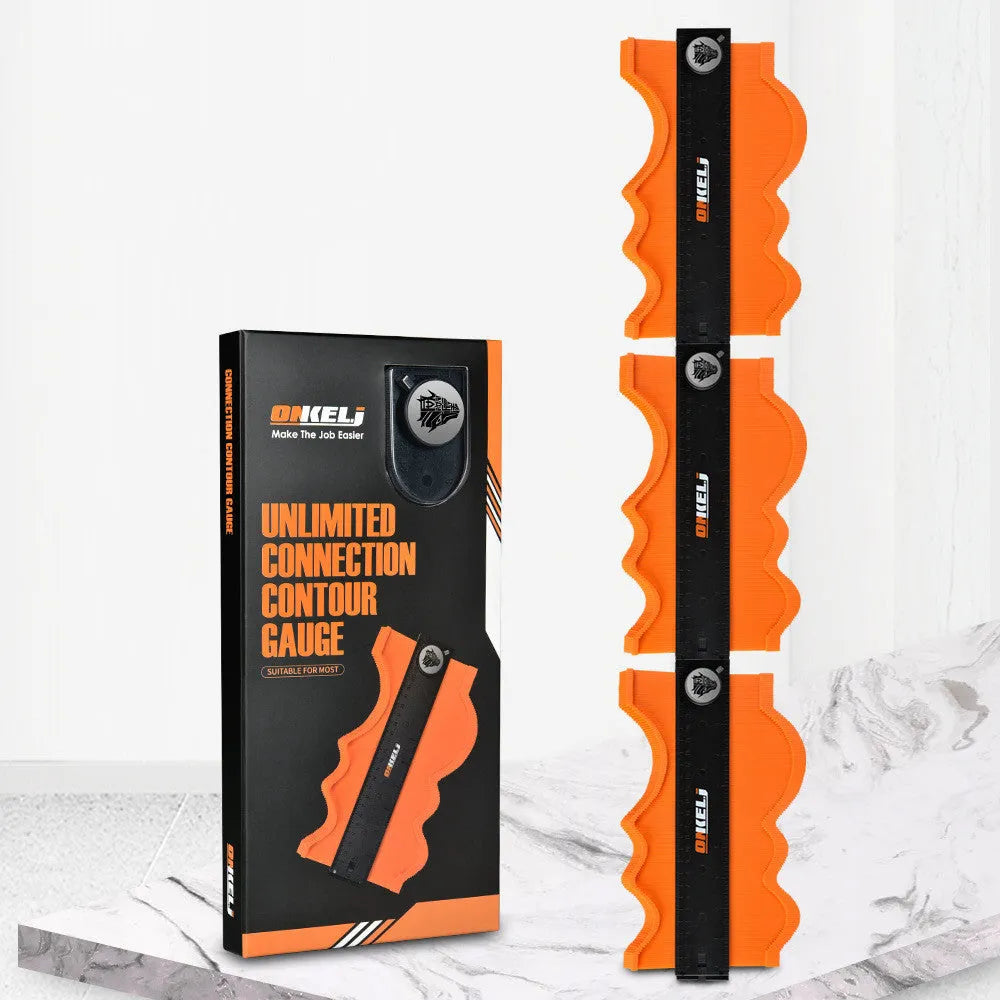

This professional contour gauge provides a reliable solution for copying and transferring irregular shapes and profiles with precision. The 10-inch infinite splicing design allows the tool to match complex curves that fixed-pin gauges cannot accommodate, making it essential for woodworking, tiling, flooring installation, and DIY projects where accurate templates are required. Constructed from ABS plastic and stainless steel, the gauge offers durability while maintaining the 1mm accuracy needed for precise work. The included locking belt mechanism ensures captured shapes remain secure during transfer to your materials.

Features and Construction

The contour gauge combines practical design with precise functionality to address common measuring challenges. Its construction focuses on reliable performance for both professional tradespeople and serious DIY enthusiasts who require accurate shape reproduction.

Material and Build

The gauge utilises ABS plastic for the main body structure, providing impact resistance and dimensional stability during use. Stainless steel components form the pins and locking mechanisms, offering corrosion resistance and maintaining precise alignment. This material combination balances durability with functional performance, ensuring the tool maintains its 1mm accuracy specification throughout regular use.

Size and Practical Fit

With dimensions measuring 265mm in length, 130mm in width, and 27mm in depth, the gauge offers a compact form that fits easily in toolboxes and work areas. The 10-inch measurement refers to the working length of the infinite splicing system, allowing it to capture contours up to this span. The tool's size makes it manageable for detailed work while providing sufficient capacity for most common profiling tasks in woodworking, flooring, and tiling applications.

Uses and Placement

The contour gauge serves multiple purposes across different trades and project types. Its design addresses the fundamental challenge of accurately transferring irregular shapes from one surface to another, whether working with wood, tiles, laminates, or other materials.

Event or Professional Use

For professional tradespeople, the gauge offers time-saving accuracy when creating templates for custom installations. Flooring installers can use it to match complex room perimeters, while tilers benefit when cutting border pieces to fit irregular walls. Carpenters and joiners find it valuable for replicating moulding profiles or creating custom trim pieces that must match existing architectural details. The locking belt ensures shapes remain captured during the marking process.

Everyday Home Use

DIY enthusiasts will appreciate the gauge for home improvement projects requiring precise fitting. It proves useful when installing laminate flooring around door frames, creating custom shelving that fits irregular wall spaces, or making templates for countertop cutouts. The 1mm accuracy provides confidence that transferred shapes will fit correctly, reducing material waste from incorrect cuts. The infinite splicing design accommodates the varied contours often encountered in older homes with non-standard dimensions.

Benefits and Buying Value

This contour gauge delivers practical advantages through its specific design features and construction. The value stems from its ability to address measuring challenges that other tools cannot solve efficiently.

Reuse and Low Maintenance

The gauge requires minimal maintenance beyond basic cleaning after use. The ABS plastic and stainless steel construction resists corrosion and deformation, supporting repeated use across multiple projects. Unlike disposable measuring solutions or improvised methods, this tool provides consistent performance over time. The locking belt mechanism maintains reliability through repeated engagement cycles, ensuring shapes remain securely captured during each use.

Why Choose This Product

This contour gauge stands out for its combination of infinite splicing capability with secure locking functionality. While basic contour gauges allow shape copying, they often lack mechanisms to preserve the captured profile during transfer. The locking belt addresses this limitation, making the tool more reliable for practical application. The specified 1mm accuracy provides measurable precision that supports quality results in woodworking, tiling, and installation work where close fits matter.
