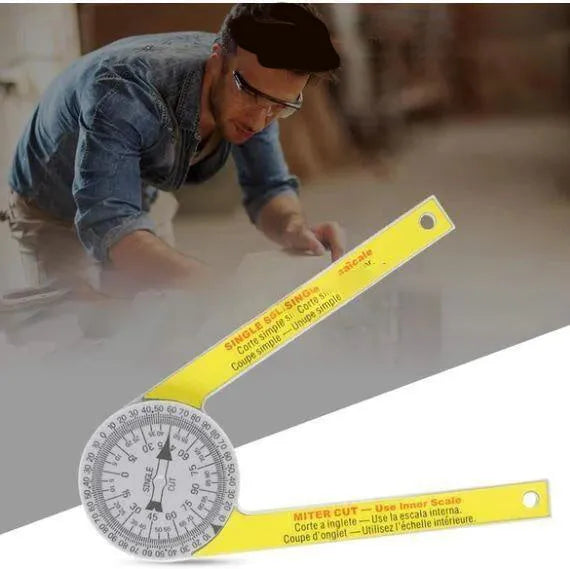

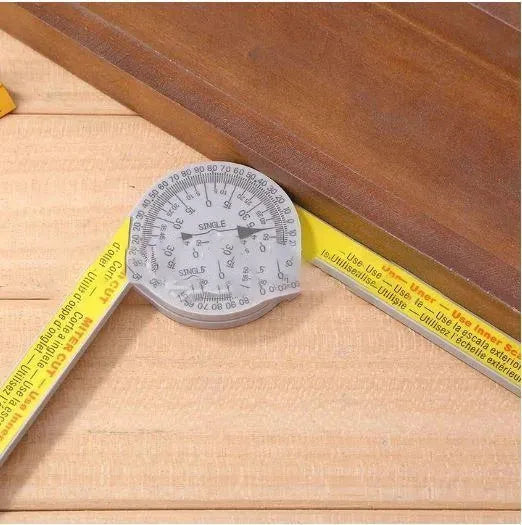

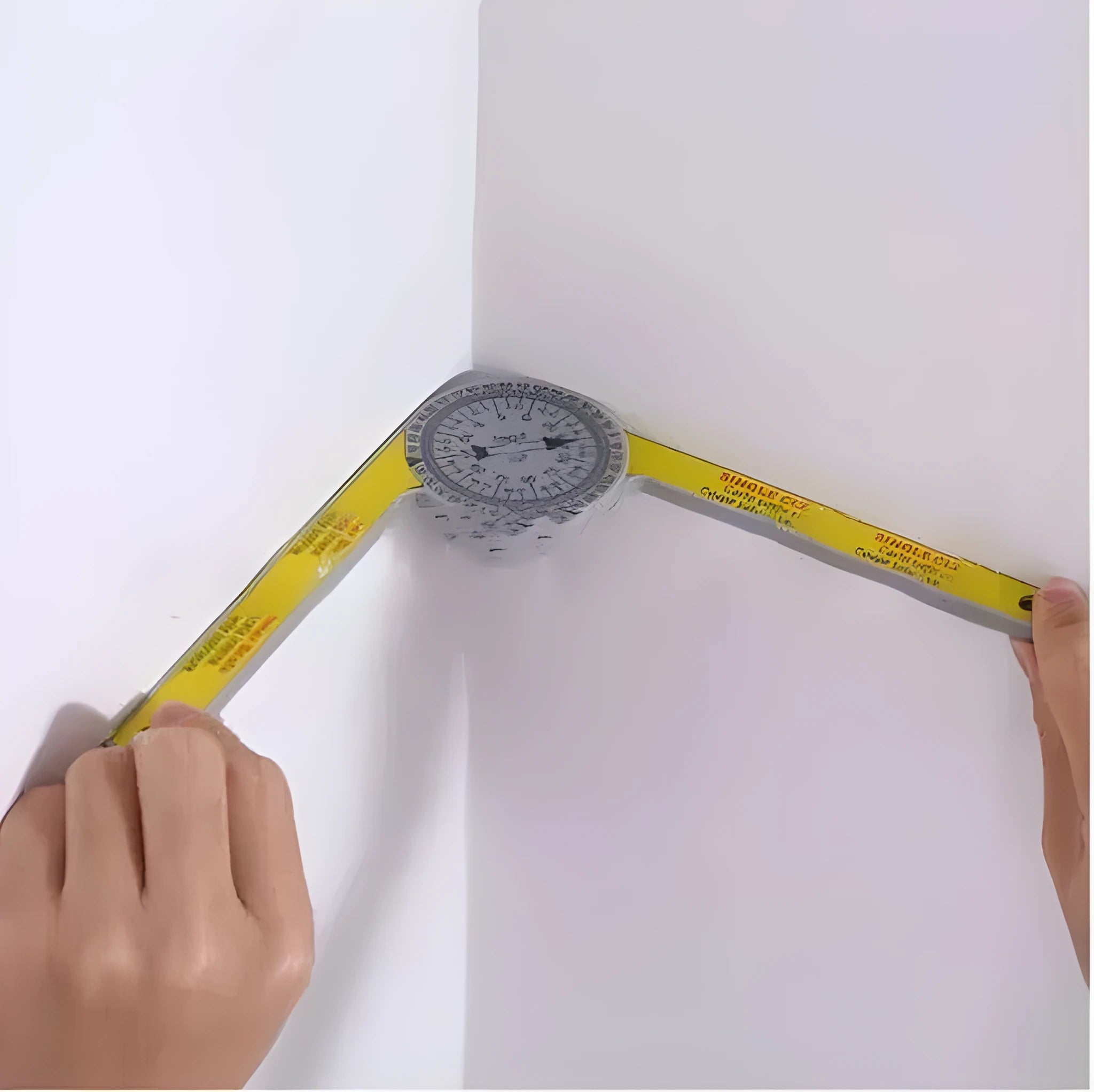

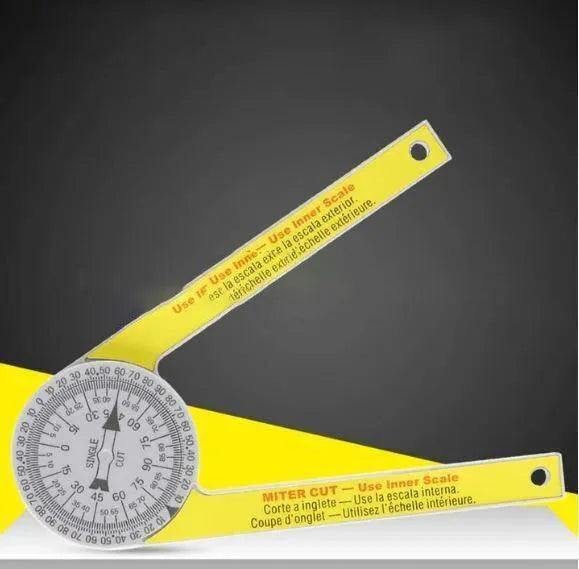

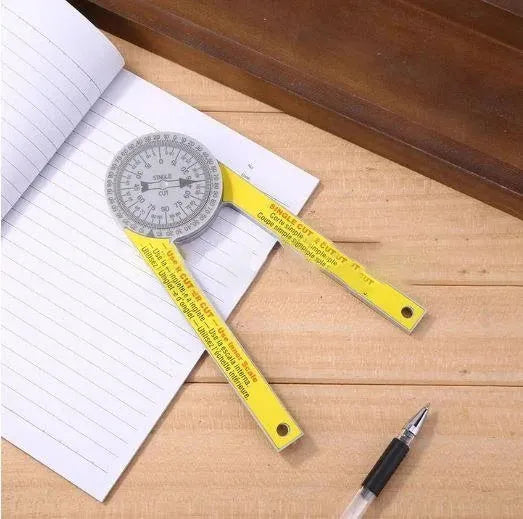

Cross-border Horizontal Angle Ruler with Laser Engraving Scales for Direct Miter Saw Measurement Transfer

This cross-border horizontal angle ruler serves as a specialised measurement and transfer tool designed for woodworking applications where precise angle replication between measuring instruments and cutting tools is essential. By incorporating dual laser engraving scales and a single cut ladder mechanism, it bridges the gap between initial angle measurement on workpieces and accurate implementation on power saws. The tool addresses the common workshop challenge of transferring complex bevel cut angles without manual recalculation or estimation, potentially reducing both time expenditure and material waste during precision cutting projects. Available in two functional variants—with or without an integrated horizontal liquid level—it caters to different measurement preferences within woodworking and carpentry environments.

Features and Construction

The cross-border horizontal angle ruler combines several practical features focused on measurement accuracy and workshop durability. Its design centres around efficient angle transfer rather than simple measurement, making it particularly valuable for repetitive cutting tasks where consistency matters. The construction prioritises functional elements that support direct workflow integration between layout marking and final cutting operations.

Material and Build

Constructed from hardened plastic, the 7-inch ruler provides sufficient rigidity for workshop use while maintaining a manageable 113g weight for handheld operation. This material selection offers resistance to typical workshop wear without the maintenance requirements of metal alternatives. The yellow and white colour scheme enhances visibility against various wood tones and workshop backgrounds, supporting quick reading of measurement scales during active projects.

Size and Practical Fit

With compact 10.5x5.8x0.8 cm dimensions, the ruler occupies minimal space in tool storage while remaining large enough for practical angle measurement tasks. This size balances measurement capacity with portability, making it suitable for both fixed workshop benches and mobile tool kits. The slim 0.8 cm profile facilitates storage alongside other measuring tools without requiring dedicated cases or excessive protection.

Uses and Placement

The cross-border horizontal angle ruler finds application in various woodworking scenarios where accurate angle transfer between measurement and cutting stages improves project outcomes. Its functionality extends beyond basic measurement to active workflow integration, potentially streamlining processes that traditionally require multiple tools or manual calculations. The available variants with or without horizontal liquid levels accommodate different measurement approaches and user preferences.

Event or Professional Use

In professional woodworking environments, the tool's direct angle transfer capability supports efficient batch production of angled components by reducing setup time between measurement and cutting stages. The dual laser engraving scales provide reference points for complex bevel cuts that might otherwise require trial-and-error adjustment on power equipment. For projects requiring repetitive angle cutting—such as framing, furniture making, or decorative trim work—the single cut ladder's direct transmission to miter saw protractors maintains consistency across multiple pieces.

Everyday Home Use

For DIY enthusiasts and home workshop users, the ruler simplifies angle work that typically challenges those without advanced geometric calculation skills. By physically transferring measured angles to power saw settings, it reduces the risk of cutting errors that waste materials in smaller-scale projects. The option selection between models with or without horizontal liquid levels allows users to match the tool to their existing measurement habits—either preferring visual bubble levels or relying solely on scale readings.

Benefits and Buying Value

The cross-border horizontal angle ruler offers practical advantages centred on workflow efficiency and material conservation rather than luxury features or aesthetic considerations. Its value proposition lies in addressing specific measurement transfer challenges that conventional rulers and protractors leave unresolved. By focusing on direct functional integration between layout and cutting stages, it potentially reduces both time investment and material costs in angle-dependent projects.

Reuse and Low Maintenance

The hardened plastic construction requires minimal specialised maintenance beyond basic cleaning to preserve measurement accuracy, particularly for models containing liquid levels. This material choice supports repeated use across multiple projects without degradation affecting functional performance. The tool's durable build allows it to serve as a long-term addition to workshop tool collections rather than a disposable measuring accessory.

Why Choose This Product

This angle ruler distinguishes itself through its specialised focus on direct angle transfer rather than general measurement alone. The integration of dual laser engraving scales with a single cut ladder mechanism creates a workflow bridge that conventional measuring tools lack. For users regularly working with bevel cuts or complex angles, the time savings from eliminating manual calculation or repeated measurement verification provides practical value beyond the tool's purchase cost. The available variant selection further customises the tool to individual measurement preferences and existing workshop practices.
