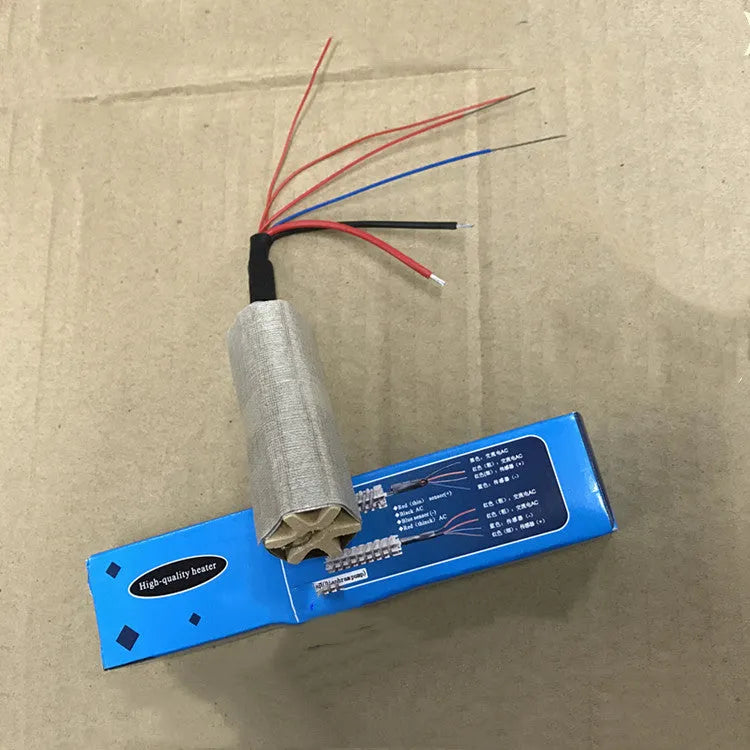

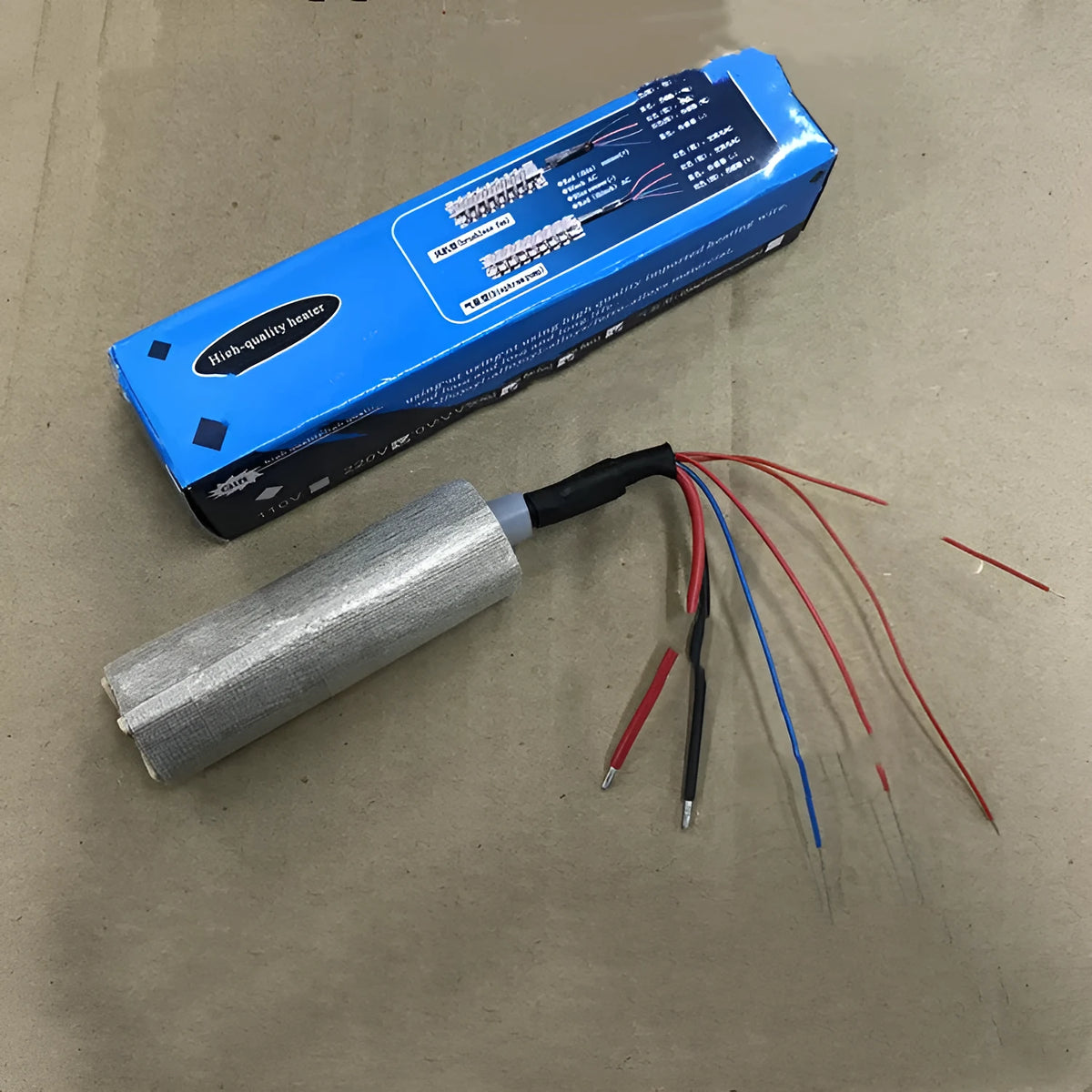

Cyclone Hot Air Gun Heating Core 6-Wire Ceramic Replacement for Yihua 858D 8508D 8786D 862D

When your Yihua hot air gun loses its ability to reach soldering temperatures, the heating core is the most likely cause. This 6-wire ceramic heating element is a factory-spec replacement designed to restore consistent heat output to your Yihua 858D, 8508D, 8786D, or 862D soldering station. The replacement core includes a mica paper insulator and is built around a 3-group wiring structure for heating, temperature sensing, and control. With a 70mm length and 23mm diameter, it slots directly into the existing handle assembly without modification. Whether you are repairing a workshop tool or maintaining a production line, this heating core offers a practical, source-matched solution to get your gun back in service.

Features and Construction

The heating core is constructed from a ceramic body with a 6-wire lead system divided into three distinct functional groups. Each group serves a specific role in the hot air gun's operation, ensuring accurate temperature regulation and reliable heating performance.

Material and Build

The heating element is made from a ceramic material that withstands repeated thermal cycling. The 6 wires are arranged in three sets: a heating group, a temperature control group, and an induction sensor group. A sheet of mica paper is supplied with the core to provide electrical insulation between the element and the gun body.

Size and Practical Fit

The core measures 70mm in length with a diameter of 23mm, which matches the internal dimensions of Yihua 858D, 8508D, 8786D, and 862D hot air guns. The 6-wire connector uses a standard pin arrangement that corresponds directly to the original wiring harness in these models.

Resistance Specifications

Two resistance values are provided for verification. The power line end resistance measures approximately 75 ohms, and the sensor wire end resistance measures approximately 1.5 ohms. These figures help confirm correct installation and wiring continuity.

Uses and Placement

This replacement core is intended for use in hot air soldering stations where the original heating element has failed or degraded. It restores the gun's ability to heat evenly for tasks such as desoldering, shrink wrapping, and rework.

Soldering Station Repair

The primary use is replacing a worn or open-circuit heating core in a Yihua hot air gun. The 6-wire, 3-group design ensures compatibility with the station's temperature control circuit, so the gun can maintain set temperatures during use.

Workshop Maintenance

For electronics repair shops and hobbyists, the core provides a single-part fix for a common failure point. Including the mica paper eliminates the need to source that component separately, simplifying the repair process.

Benefits and Buying Value

Buying a replacement heating core rather than a whole new hot air gun saves money and reduces electronic waste. The ceramic construction and mica insulation offer a like-for-like replacement that maintains the original tool's performance.

Cost-Effective Repair

Replacing only the heating core is significantly less expensive than purchasing a complete new hot air gun. This approach extends the usable life of your existing Yihua soldering station without sacrificing performance.

Why Choose This Product

The heating core is built to the same 6-wire, 3-group specification as the original Yihua part. The inclusion of mica paper and the clearly stated resistance values give you the confidence of a correct match before installation.
