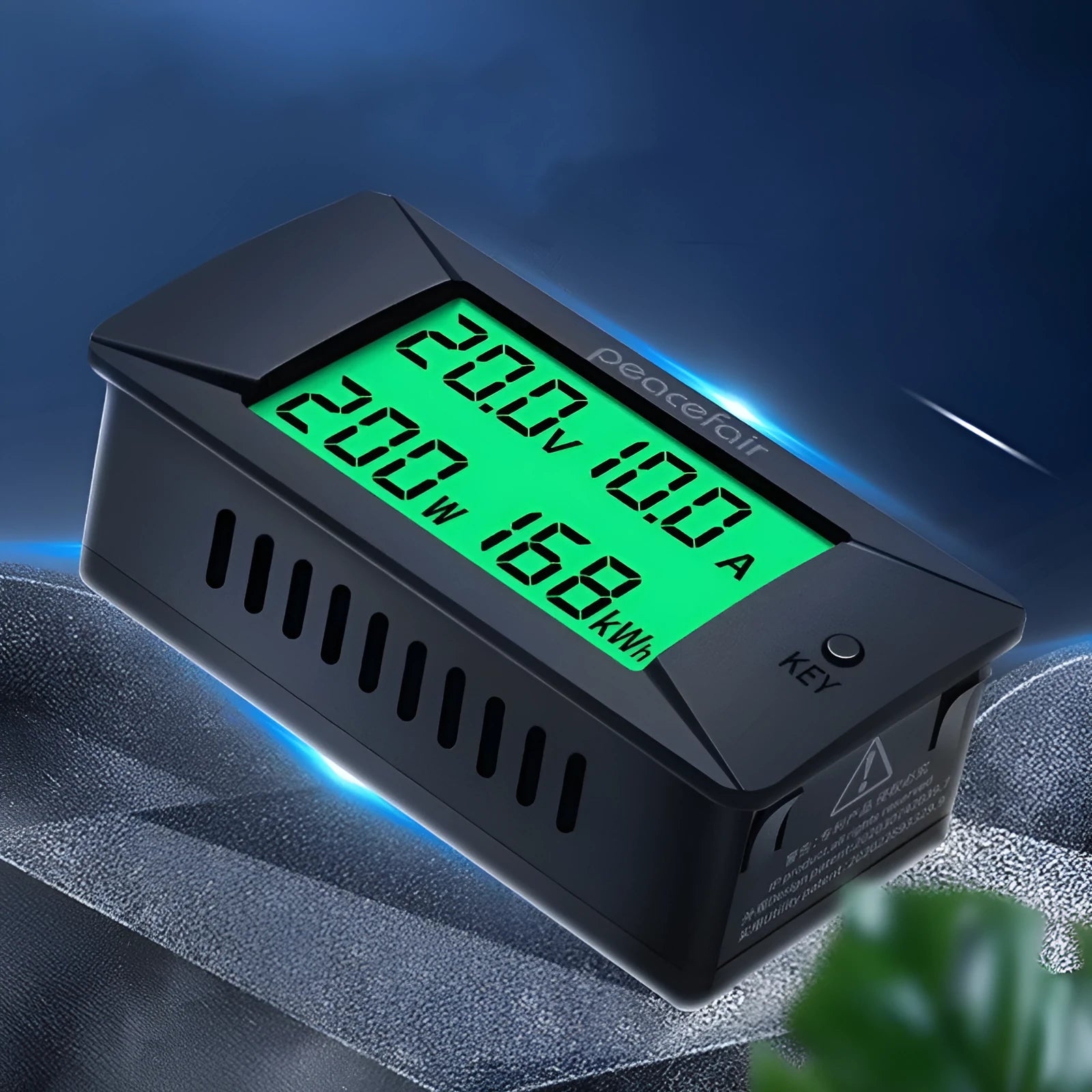

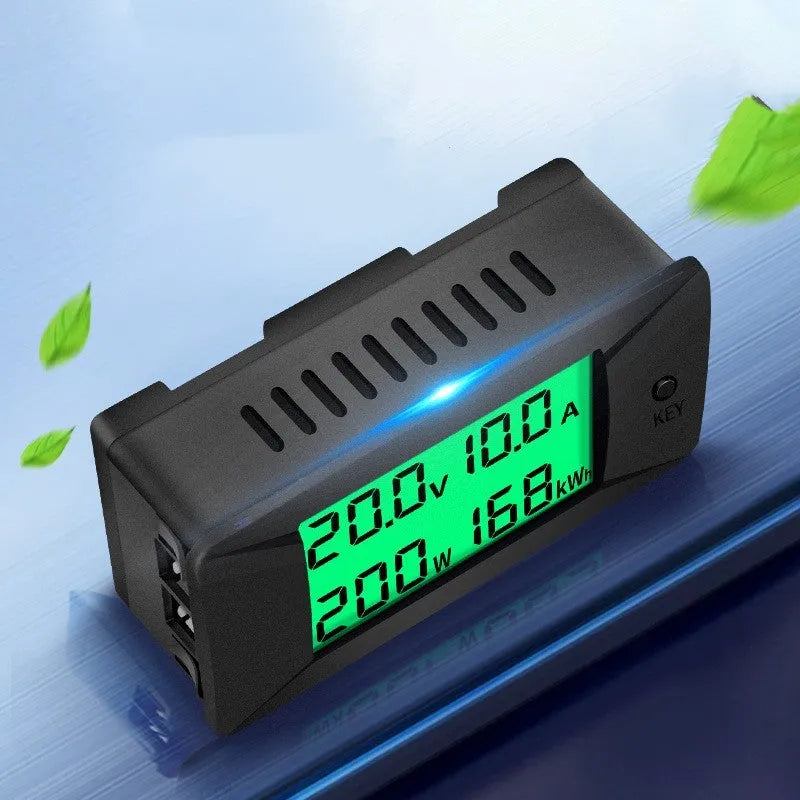

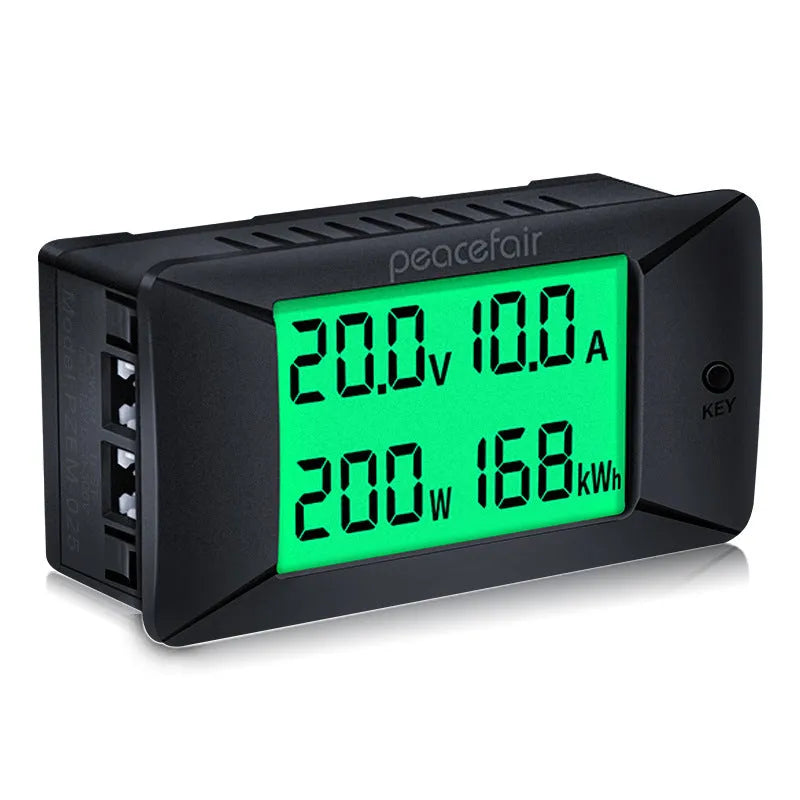

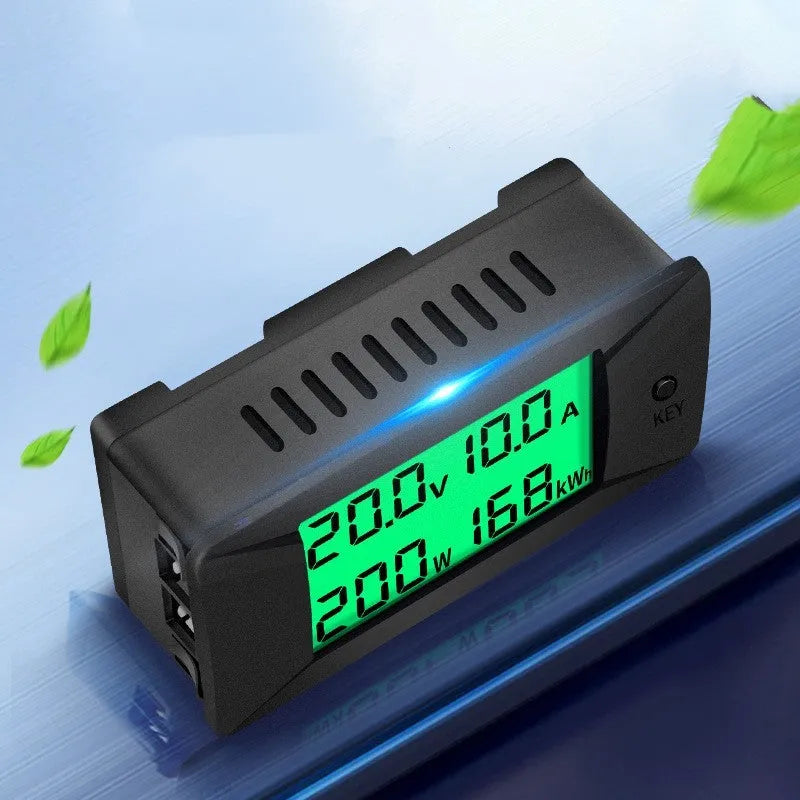

DC Digital Display Voltmeter and Ammeter for Accurate Voltage and Current Monitoring

This DC digital display meter is a practical instrument designed for monitoring voltage and current in low-voltage direct current systems. Its primary function is to provide a clear, digital readout of electrical parameters, serving as both a voltmeter and an ammeter. With a voltage measurement range of 0-300V for both input and output, it is suited for a variety of applications where tracking power consumption or system voltage is necessary. The device operates effectively under standard ambient temperature conditions and is available in several current-carrying capacities, allowing you to match the meter to your specific circuit requirements. Its compact form factor makes it a viable option for installation in control panels, battery banks, solar power systems, or electronic projects where space is at a premium.

Features and Construction

The meter is built as a multi-function digital instrument, combining the roles of a voltmeter and an ammeter into one compact unit. This consolidation saves panel space and simplifies wiring compared to using two separate meters. The construction is focused on providing reliable measurement and clear visual feedback through its digital display.

Material and Build

The host meter is constructed from plastic housing that encases the electronic display and measurement circuitry. The internal components are designed for accurate sensing and conversion of electrical signals into readable digital values. The provided wiring is made from copper, ensuring good electrical conductivity for safe and reliable connections to the circuit being monitored. The build prioritises functionality and clear data presentation for the user.

Size and Practical Fit

The meter's compact boundary dimensions are precisely 85.3mm wide, 44mm high, and 40.2mm deep. This relatively small footprint allows for installation in confined spaces on control panels, enclosures, or project boxes. The size is a key practical consideration, as it enables integration into existing systems without requiring significant redesign or additional space allocation. The physical dimensions are consistent across the different ampere rating models.

Uses and Placement

This digital meter is applicable in any scenario requiring monitoring of DC voltage and current. Its design supports both professional and hobbyist applications where understanding power flow is crucial for system management, troubleshooting, or efficiency optimisation.

Event or Professional Use

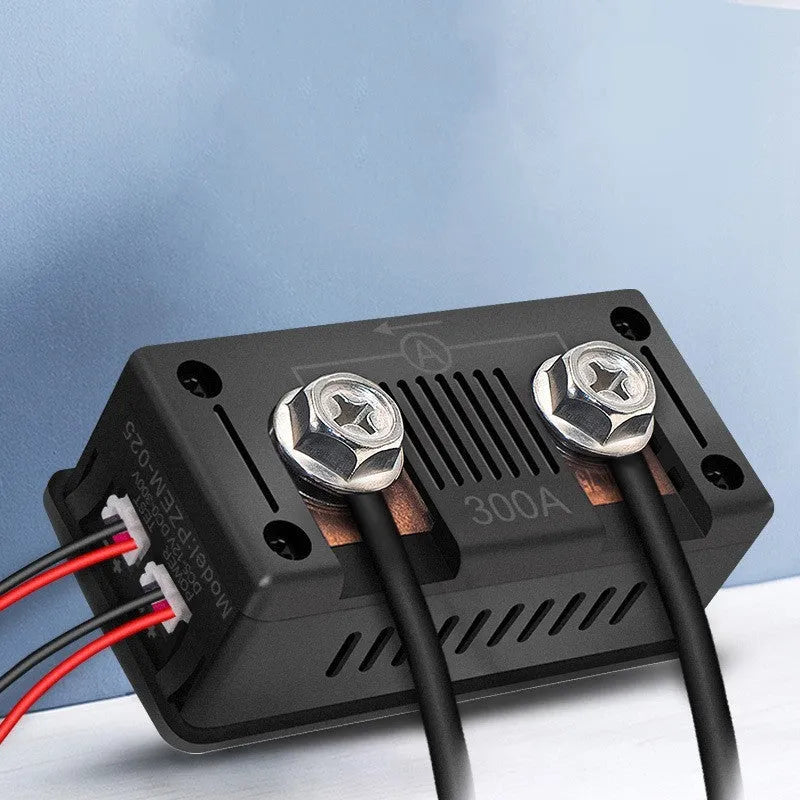

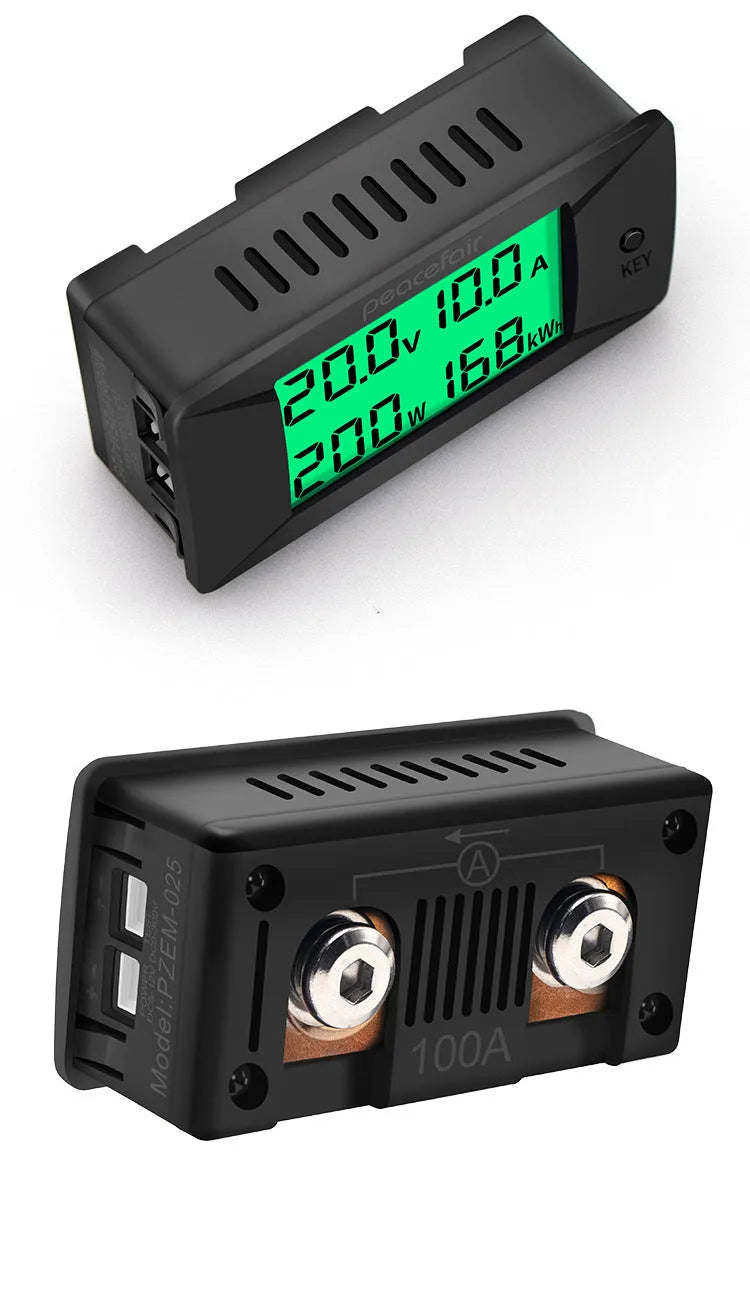

In professional settings, this meter can be integrated into renewable energy systems, such as solar panel arrays or wind turbine controllers, to monitor battery bank voltage and charging current. It is also suitable for use in telecommunications equipment racks, electric vehicle charging stations, or industrial control panels where DC power distribution needs to be measured and logged. The availability of 50A, 100A, 200A, and 300A models provides scalability for different project scales and current demands.

Everyday Home Use

For DIY enthusiasts and home users, the meter is ideal for projects like monitoring the output of a homemade power supply, tracking the discharge of a 12V leisure battery in a caravan or boat, or integrating into a custom LED lighting system to observe current draw. Its straightforward installation—aided by the included wiring and, on some models, a wrench—makes it accessible for those with basic electrical knowledge, provided all work is done safely on low-voltage DC circuits.

Benefits and Buying Value

The value of this product lies in its dual-function capability, clear display, and model flexibility. It addresses the need for reliable measurement without occupying excessive space or requiring complex setup.

Reuse and Low Maintenance

As a digital instrument with no moving mechanical parts, the meter requires minimal maintenance beyond ensuring clean connections and operating within its specified temperature range. Its solid-state design contributes to longevity in typical low-voltage environments. The device can be repurposed across different projects due to its standard measurement range, offering good value through reuse.

Why Choose This Product

Choosing this specific DC digital meter provides a clear advantage through its combination of voltmeter and ammeter functions in one unit, saving both space and cost compared to purchasing separate devices. The availability of four different current ratings (50A, 100A, 200A, 300A) allows for precise matching to your circuit's maximum current, ensuring accurate measurement across the scale. The inclusion of necessary components—host, wiring, and on select models a wrench—means you have everything required for basic installation in one package, reducing the need to source additional parts.
