DIY Power Bank Module Kit for Custom 18650 Battery Power Supplies

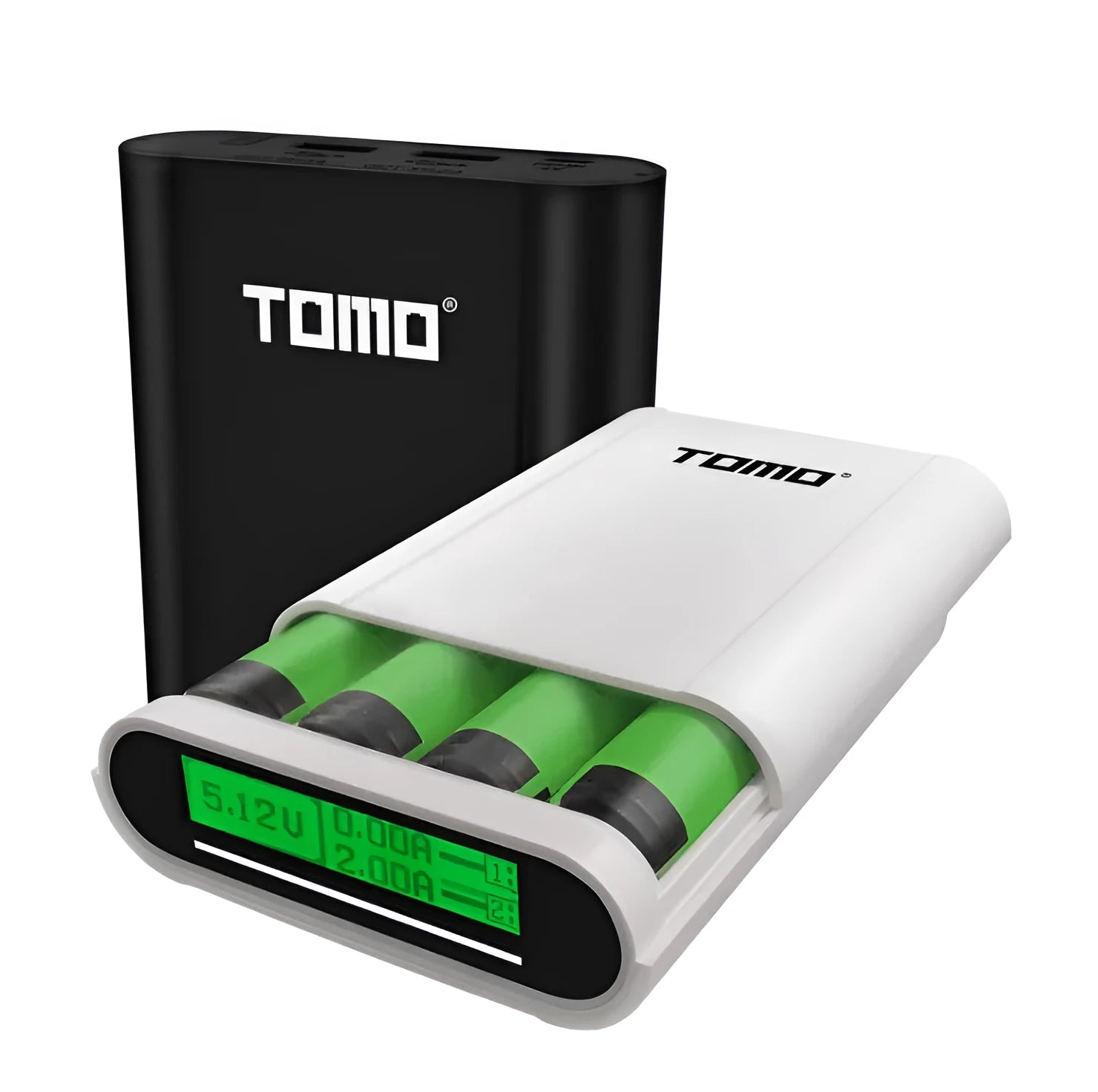

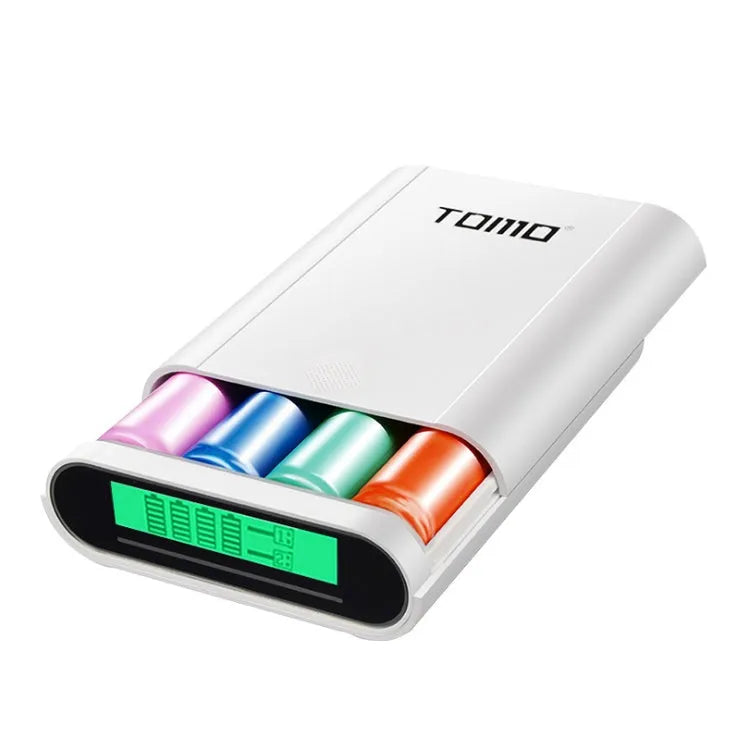

This DIY power bank module provides a core component for assembling your own custom portable power solution. Designed to house four standard 18650 lithium-ion batteries, it puts you in control of the final product's capacity, quality, and performance by allowing you to select the specific battery cells. The module serves a dual purpose, functioning both as a portable external battery pack for charging phones, tablets, and other small electronics, and as a dedicated charger for the 18650 batteries themselves. With dimensions of 100 x 84 x mm and a choice of black or white casing, it forms a compact foundation for a versatile power bank. It is important to note that this product is supplied as a module kit and does not include batteries.

Features and Construction

The module is built around functionality that supports safe and flexible DIY power bank creation. Its design incorporates specific circuits and a display to give you clear information and control over your custom power supply.

Material and Build

The module's construction centres on a PCB that hosts the charging, discharging, and protection circuitry. The available black or white casing houses this board and provides the battery slots. A key built-in feature is the reverse polarity protection circuit, which automatically identifies and cuts power to any battery installed with reversed polarity, displaying an empty level for that cell on the LCD. This safety measure prevents damage while allowing the other correctly connected batteries and circuits to continue operating normally.

Size and Practical Fit

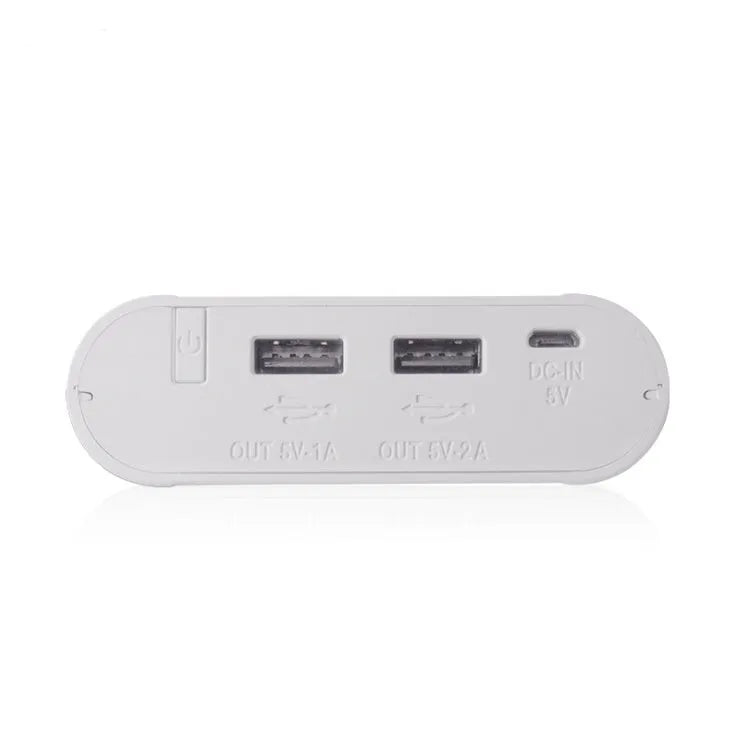

The module has a compact footprint, measuring 100 mm in length, 84 mm in width, and 26 mm in height. This size is designed to accommodate the four 18650 batteries in a stable configuration while keeping the overall unit portable. The dual USB output ports and dual charging inputs are integrated into this form factor, providing the necessary connectivity without excessive bulk.

Uses and Placement

This module is intended for users who want to create a tailored power solution, whether for personal, hobbyist, or light professional use. It bridges the gap between off-the-shelf power banks and fully custom-built electronics.

Event or Professional Use

For events, fieldwork, or situations requiring reliable backup power, a power bank built with this module can be configured with high-quality, high-capacity 18650 cells to meet specific runtime demands. The ability to charge two devices simultaneously via the dual USB outputs makes it suitable for powering essential communication gear or camera equipment on the go. The independent circuit design allows the unit to charge and discharge at the same time, enabling continuous use in some scenarios.

Everyday Home Use

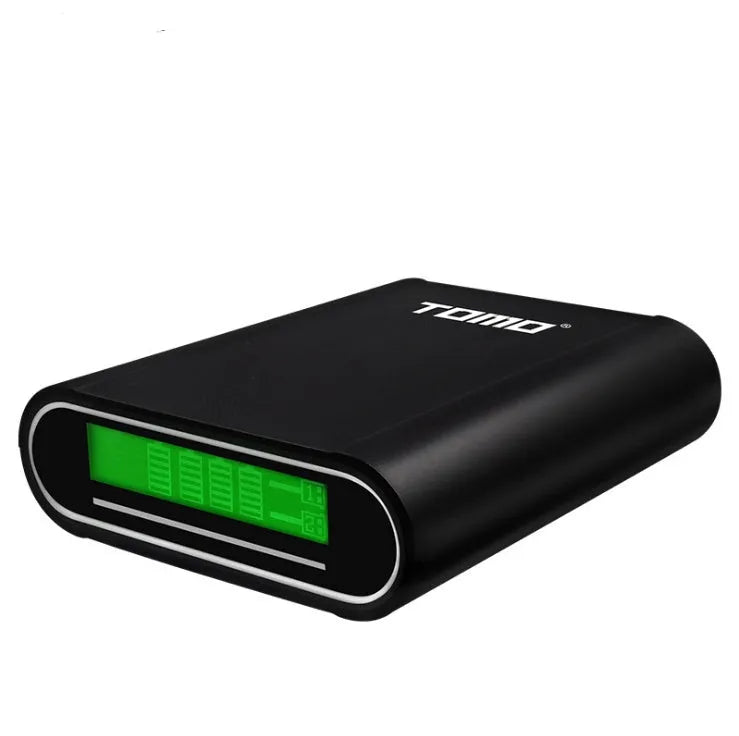

At home, a power bank assembled with this module serves as a versatile charging hub. It can be kept ready for topping up smartphones, tablets, Bluetooth headphones, or handheld gaming devices. Using it as a charger for your spare 18650 batteries (commonly used in torches, vapes, or other gadgets) consolidates your charging needs. The LCD screen provides a straightforward check of remaining power before heading out.

Benefits and Buying Value

The primary value of this product lies in its customisability and the control it offers over the final power bank's specifications, moving away from pre-assembled units of fixed and sometimes overstated capacity.

Reuse and Low Maintenance

The module promotes reuse and informed maintenance. You can replace individual 18650 batteries as they age or if their performance declines, extending the life of the power bank core. The clear capacity readout from the LCD helps in monitoring battery health over time. The construction is focused on the core circuitry, implying minimal maintenance beyond battery care.

Why Choose This Product

This module is a practical choice if you wish to determine the exact capacity and quality of your power bank by selecting known, reputable 18650 batteries, thereby avoiding the risk of inferior cells often found in some pre-made products. The inclusion of dual inputs (8-pin and Micro USB) offers convenience in how you recharge it, while the dual outputs and independent circuit design provide flexible charging capability. The reverse polarity protection adds a layer of safety for the DIY assembly process.
