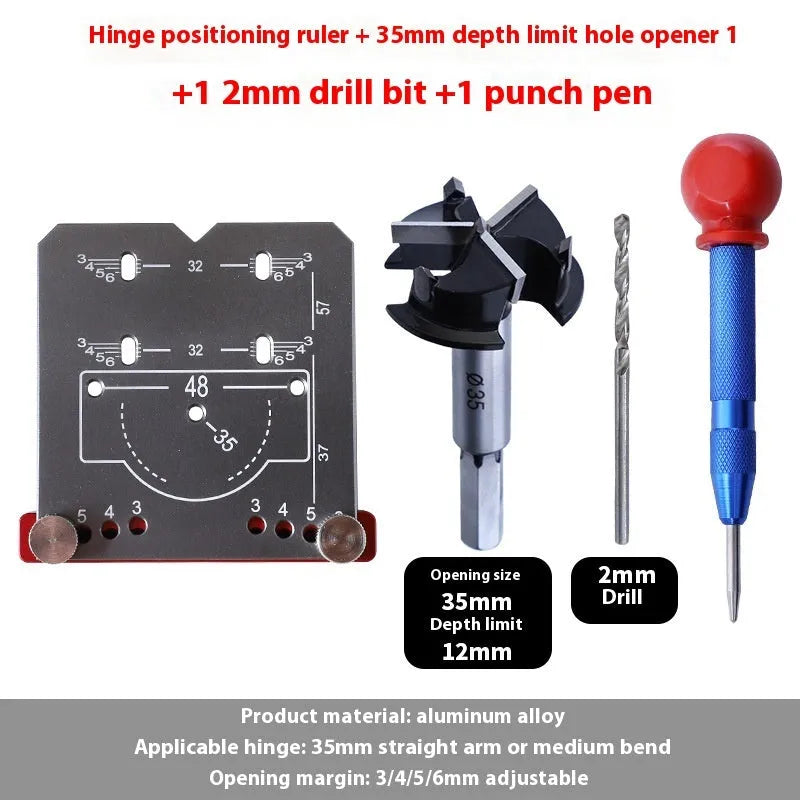

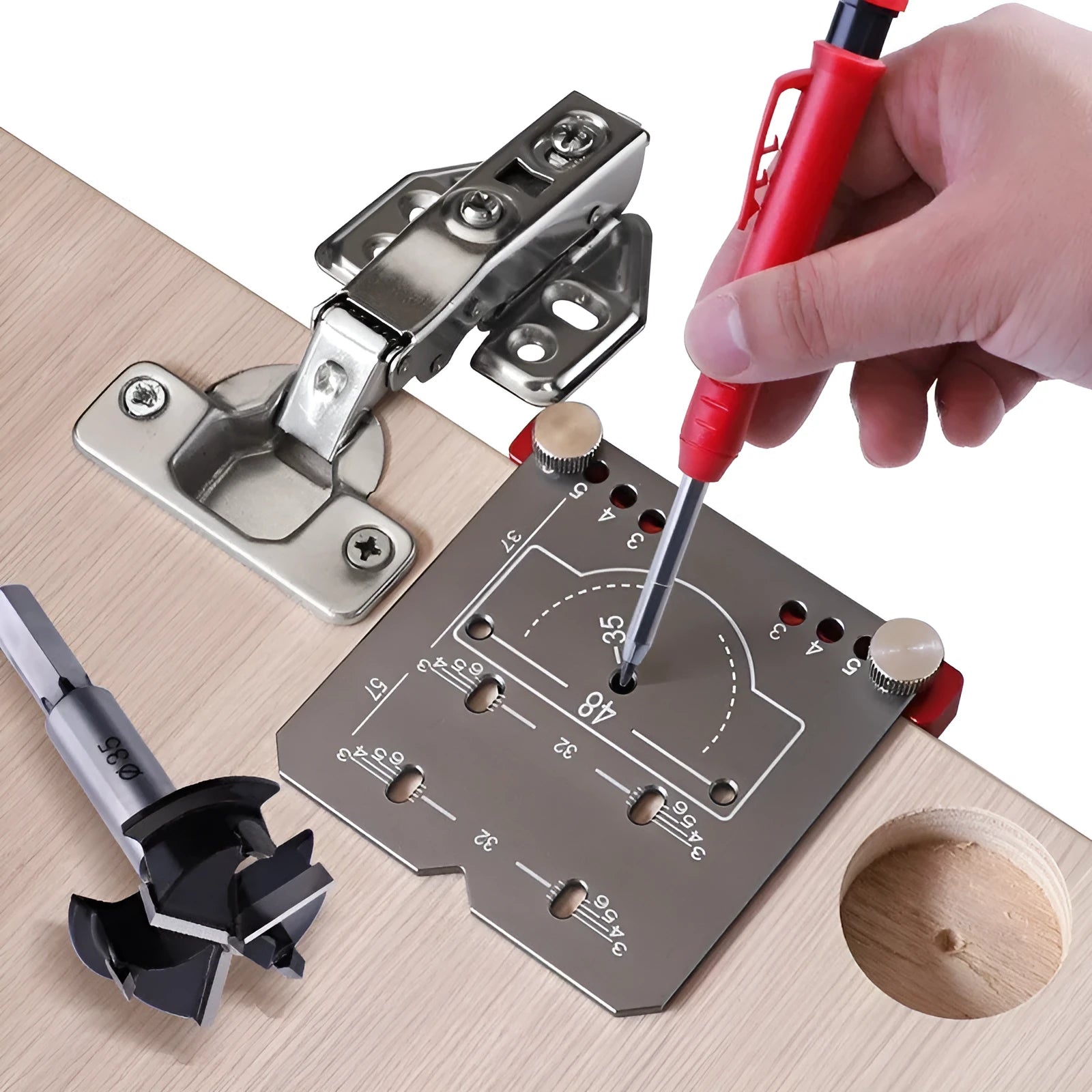

35mm hinge punch locator tool with adjustable margin settings for cabinet and wardrobe installation

This hinge punch locator provides a practical solution for accurately positioning hinges during cabinet door and wardrobe installation projects. Designed specifically for 35mm extended arm and middle bend hinges, it features adjustable margin settings that allow woodworkers and DIY enthusiasts to select from 3mm, 4mm, 5mm, or 6mm openings according to their specific requirements. The aluminium alloy construction offers a balance of lightweight handling and sufficient durability for workshop use, while the included limit tapper with its heat-treated hard alloy blade provides sharp marking capability. Whether you're installing new kitchen cabinets, bedroom wardrobes, or other storage furniture, this tool helps ensure consistent hole placement for professional-looking results.

Features and Construction

The hinge locator combines several practical elements that support accurate hinge installation work. From its material composition to its adjustable components, each aspect serves a specific function in the woodworking process.

Material and Build

The main body of the hinge locating rule is constructed from aluminium alloy, providing a lightweight yet sufficiently rigid platform for marking hinge positions. This material choice makes the tool easy to handle during extended use while resisting bending or distortion under normal workshop pressure. The limit tapper component features a hard alloy blade that has undergone high-temperature heat treatment, resulting in a sharp edge suitable for marking wood surfaces before drilling. This combination of materials addresses the practical needs of hinge installation work without requiring specialised maintenance.

Size and Practical Fit

Specifically designed for 35mm hinges, this locator accommodates both extended arm and middle bend hinge types commonly used in cabinet and wardrobe construction. The adjustable margin mechanism allows users to select between 3mm, 4mm, 5mm, or 6mm opening settings, providing flexibility for different hinge designs and installation preferences. This adjustability makes the tool applicable to a wider range of projects than fixed-margin alternatives, though its use remains focused on the specified 35mm hinge size.

Uses and Placement

The hinge punch locator serves primarily in furniture assembly and installation contexts where precise hinge placement contributes to proper door operation and alignment.

Event or Professional Use

For cabinet makers, carpenters, and furniture installation professionals, this tool offers time-saving consistency when fitting multiple hinges across cabinet sets or wardrobe installations. The adjustable margin settings allow adaptation to different hinge specifications within the 35mm category, while the aluminium construction withstands regular workshop use. The limit tapper's heat-treated blade maintains its sharpness through repeated marking applications, supporting efficient workflow in professional environments.

Everyday Home Use

DIY enthusiasts undertaking home improvement projects will appreciate the simplified hinge positioning this tool provides. Installing kitchen cabinet doors, bedroom wardrobe panels, or other storage furniture requires accurate hinge placement for smooth operation and visual alignment. The adjustable settings accommodate various hinge designs while the straightforward design requires minimal technical expertise. Home users can achieve consistent results without specialised measuring tools or extensive woodworking experience.

Benefits and Buying Value

This hinge locator addresses practical needs in woodworking and furniture installation through its specific design features and material choices.

Reuse and Low Maintenance

The aluminium alloy construction requires minimal maintenance beyond basic cleaning to remove wood dust or debris. The hard alloy blade of the limit tapper, having undergone heat treatment, maintains its marking capability through multiple uses without frequent sharpening requirements. This combination supports repeated use across multiple projects, whether installing a single wardrobe or fitting hinges throughout kitchen cabinetry. The tool's durability stems from its material specifications rather than invented performance claims.

Why Choose This Product

Select this hinge punch locator for its specific suitability to 35mm hinge installations and adjustable margin settings that provide flexibility within that category. The aluminium construction offers practical handling characteristics for extended use sessions, while the included limit tapper with heat-treated blade adds marking functionality. This combination addresses the core requirements of hinge installation work without incorporating unnecessary features that might complicate operation or increase cost. The tool serves its intended purpose effectively based on its stated specifications and material composition.
