Mini-360 DC-DC Buck Converter: Compact Step-Down Power Module with 96% Efficiency

The Mini-360 is an ultra-small DC-DC synchronous rectifier buck module designed for stepping down higher DC voltages to stable, lower levels for electronic devices and projects. Its primary function is as a non-isolated buck converter, making it ideal for applications where space is at a premium but efficient power regulation is required. With an input range spanning 4.75V to 23V and an adjustable output from 1.0V to 17V, it offers significant flexibility. Its standout feature is its compact 17mm by 11mm footprint, which, combined with a maximum conversion efficiency of 96% and a peak output current of 3A, makes it a practical choice for hobbyists, developers, and engineers needing reliable voltage conversion in a minimal form factor.

Features and Construction

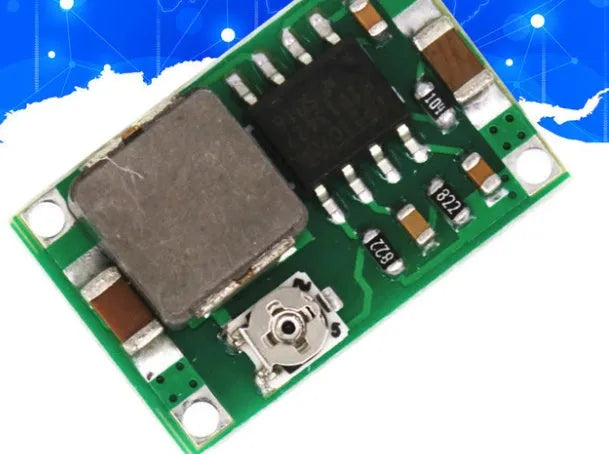

The Mini-360 module's design focuses on efficiency and miniaturisation through its use of synchronous rectification and an integrally moulded power inductor. This construction contributes to its high efficiency rating and allows for the remarkably small external dimensions of just 17mm in length, 11mm in width, and 3.8mm in height. The module's build is centred around a synchronous rectifier control chip, which manages the 340KHz switching frequency to regulate the output voltage.

Material and Build

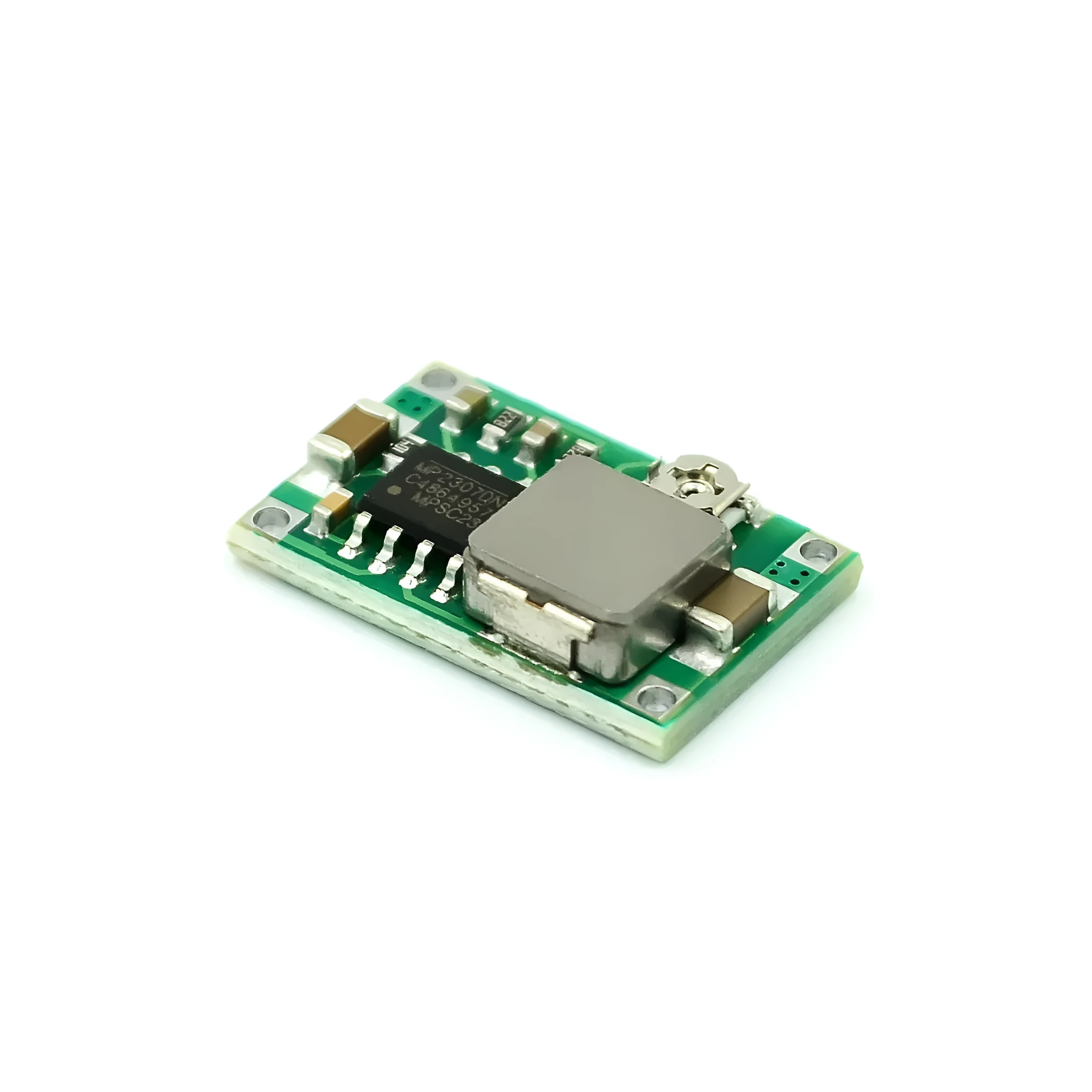

The module's construction relies on standard electronic components soldered onto a printed circuit board. The key elements mentioned are the synchronous rectifier control chip and the integrally moulded power inductor. The use of a single, moulded inductor helps reduce the component count and physical size. There is no additional casing or heat sink specified, so heat dissipation relies on the board and components themselves, which is a consideration when operating at higher currents.

Size and Practical Fit

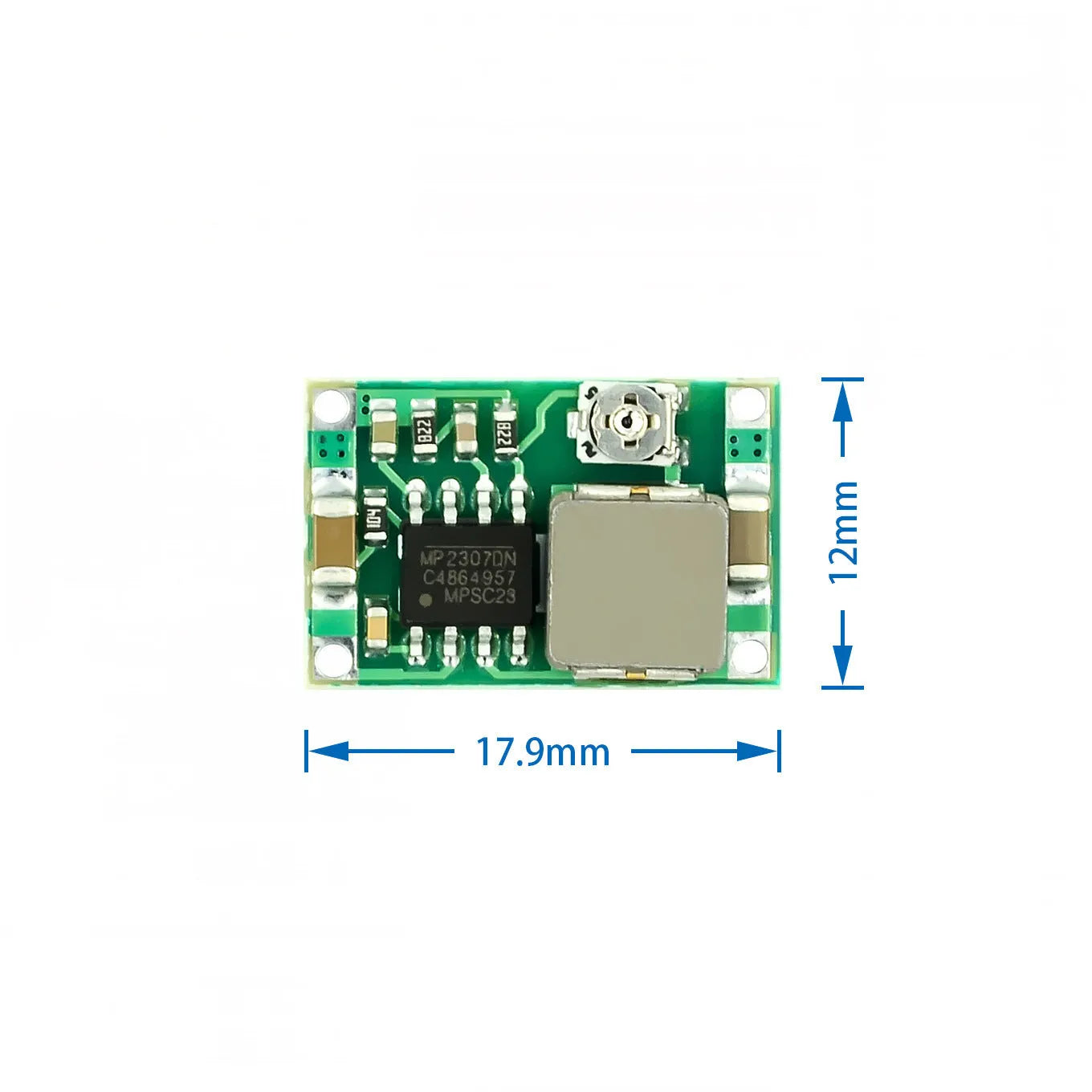

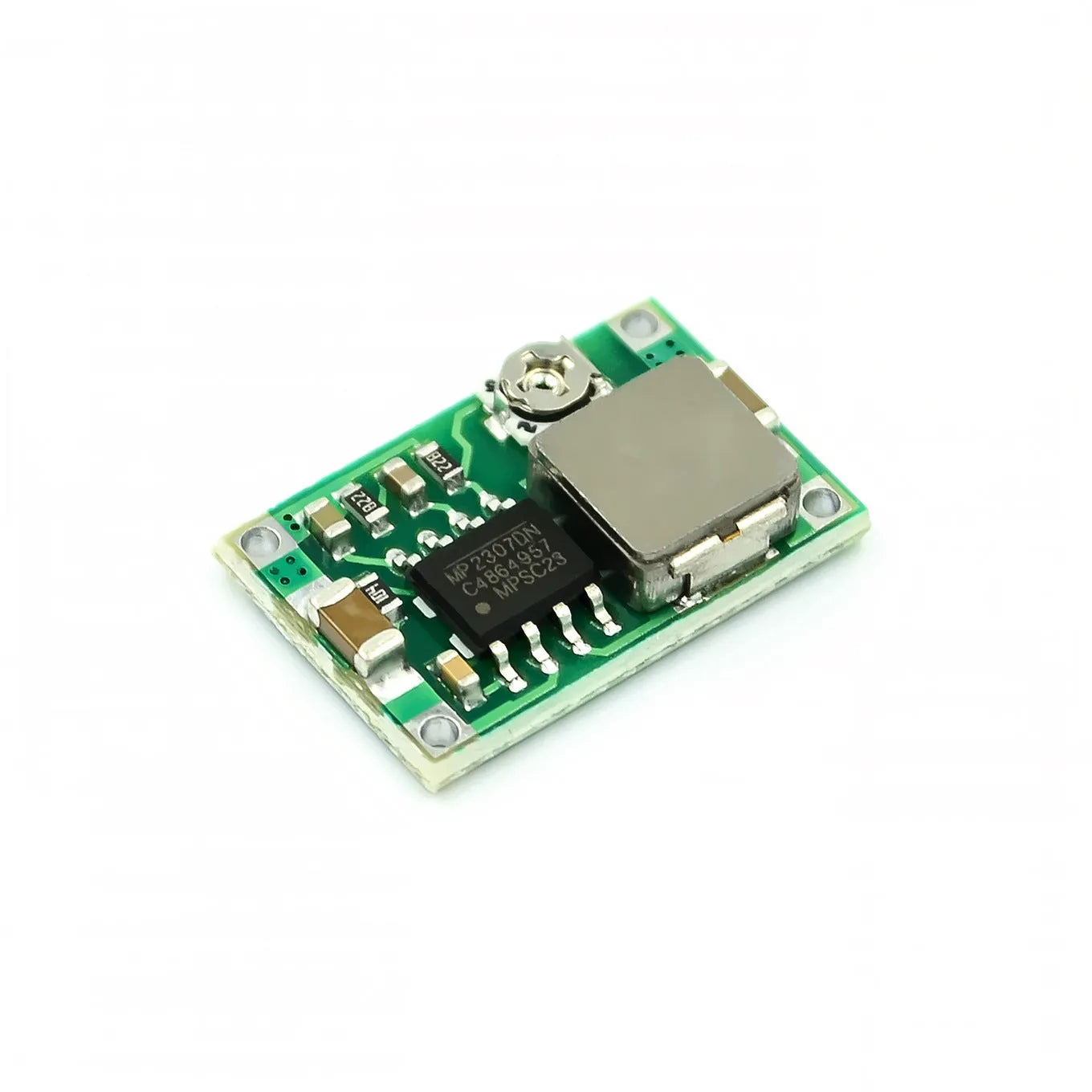

With dimensions of 17mm by 11mm by 3.8mm, the Mini-360 is notably compact, allowing it to be fitted into tight spaces within prototypes, enclosures, or existing equipment. This small size does not come at the expense of a broad operating range; it functions across an industrial temperature spectrum from -40°C to +85°C. Its physical scale makes it suitable for portable devices, drone electronics, or any project where board real estate is limited.

Uses and Placement

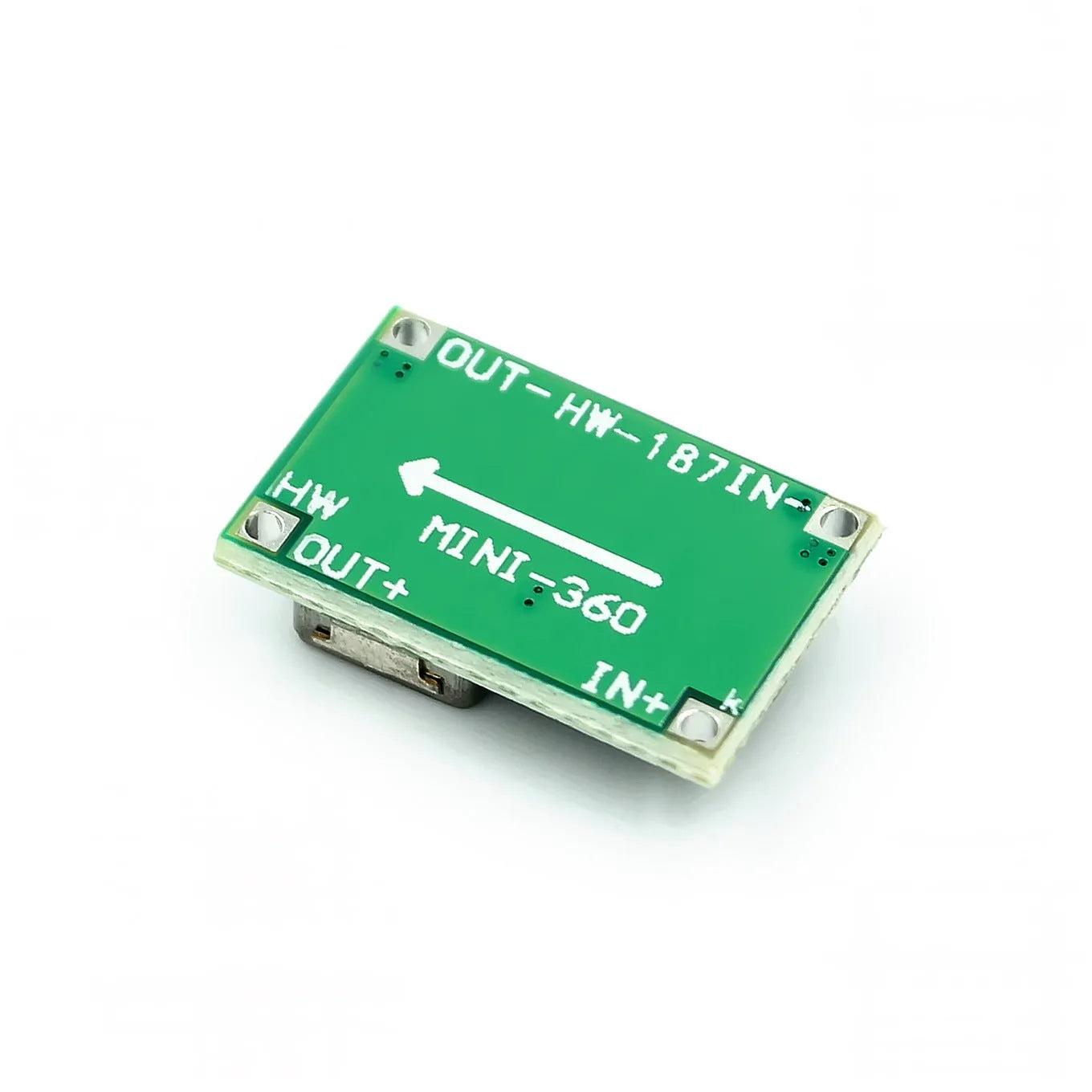

This buck converter is designed for applications requiring a stable, lower DC voltage from a higher source. Its wide input and output ranges, combined with its efficiency, open it up to numerous scenarios in both prototyping and finished products. The module's non-isolated design means it shares a common ground between input and output, which is typical for many low-voltage digital circuits.

Event or Professional Use

In professional or development environments, the Mini-360 can be used to power microcontrollers, sensors, or low-voltage motors from common power supplies like 12V or 19V laptop adapters. Its adjustable output via a potentiometer allows for quick testing and calibration. The specified load regulation of ±0.5% and voltage regulation of ±2.5% provide a degree of stability suitable for powering sensitive analogue or digital circuits during prototyping or in final installations where a custom power supply is not feasible.

Everyday Home Use

For hobbyists and makers, this module is practical for modifying or creating electronic projects. It can be used to step down the voltage from a 12V battery to 5V for USB-powered devices, or to 3.3V for many common sensors and development boards like Arduino. Its small size makes it easy to incorporate into custom enclosures for LED lighting projects, model railways, or battery-powered tools that require a specific operating voltage different from the available battery pack.

Benefits and Buying Value

The value of the Mini-360 buck converter lies in its combination of a wide operational range, high efficiency, and very compact size. It simplifies the process of obtaining a specific DC voltage, eliminating the need for more complex linear regulators that waste power as heat. For a single, low-cost module, it provides a tested solution for voltage conversion.

Reuse and Low Maintenance

As a solid-state module with no moving parts, it requires no routine maintenance. Its solder connections and components are designed for long-term use in typical electronic environments. The module can be reused across multiple projects, as its adjustable output makes it versatile. Care should be taken not to exceed its voltage and current limits to ensure longevity.

Why Choose This Product

This product is chosen for its specification-backed performance in a tiny package. The concrete figures—96% maximum efficiency, 3A peak output, 4.75V-23V input range, and 17mm x 11mm size—provide clear, measurable advantages over larger or less efficient alternatives. It offers a ready-made solution for step-down conversion that would otherwise require sourcing and assembling discrete components, saving both time and board space.
