Parallel Charging Board for RC LiPo Batteries: Charge 4 Packs Simultaneously with 35A Capacity

For radio control enthusiasts managing multiple lithium polymer battery packs, charging can become a time-consuming chore. This parallel charging board is engineered to consolidate that process. It allows you to connect and balance charge up to four separate LiPo battery packs of the same type and identical cell count in a single session. By leveraging a parallel connection, it averages cell voltages and conducts one balance cycle for the entire group, which can significantly reduce the total time spent charging compared to handling each pack individually. The board is constructed with practical safety features, including integrated fuses and protective caps, making it a functional tool for streamlining your RC hobby workflow.

Features and Construction

The board's design prioritises both performance and safety for parallel charging applications. Its components are selected to handle the combined current of multiple battery packs reliably.

Material and Build

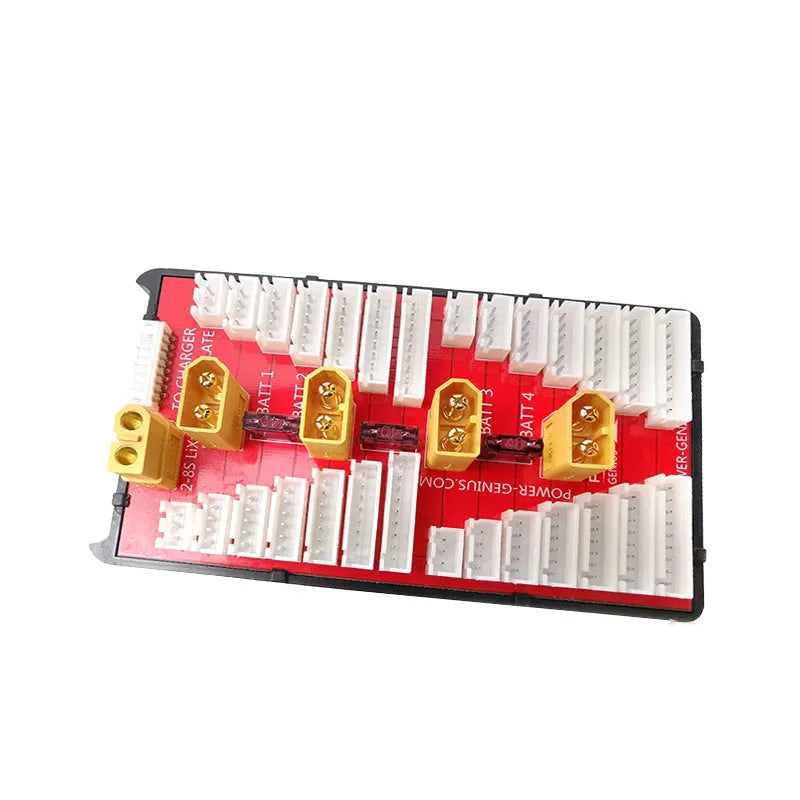

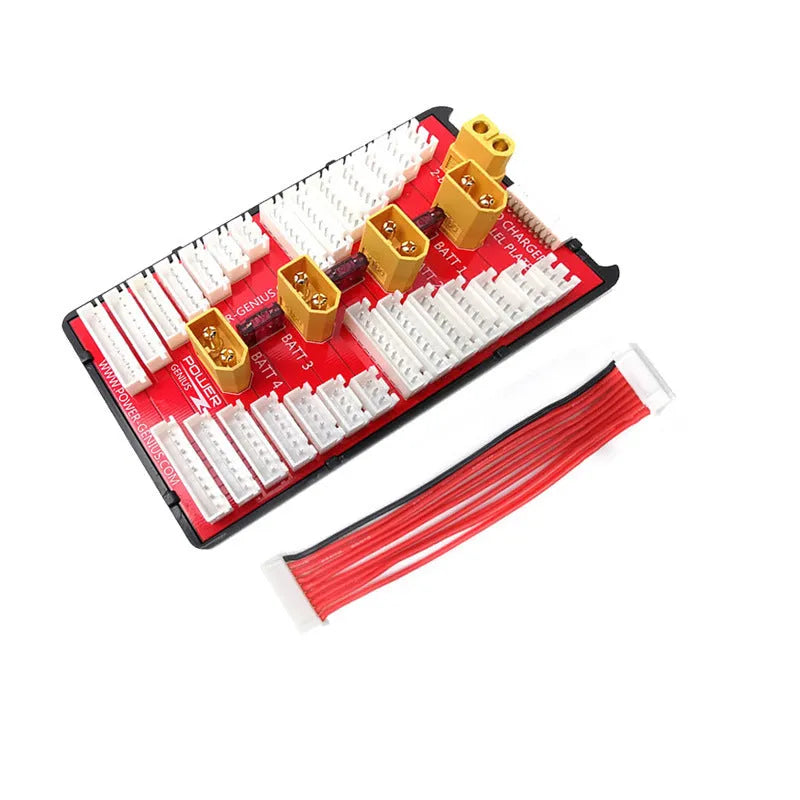

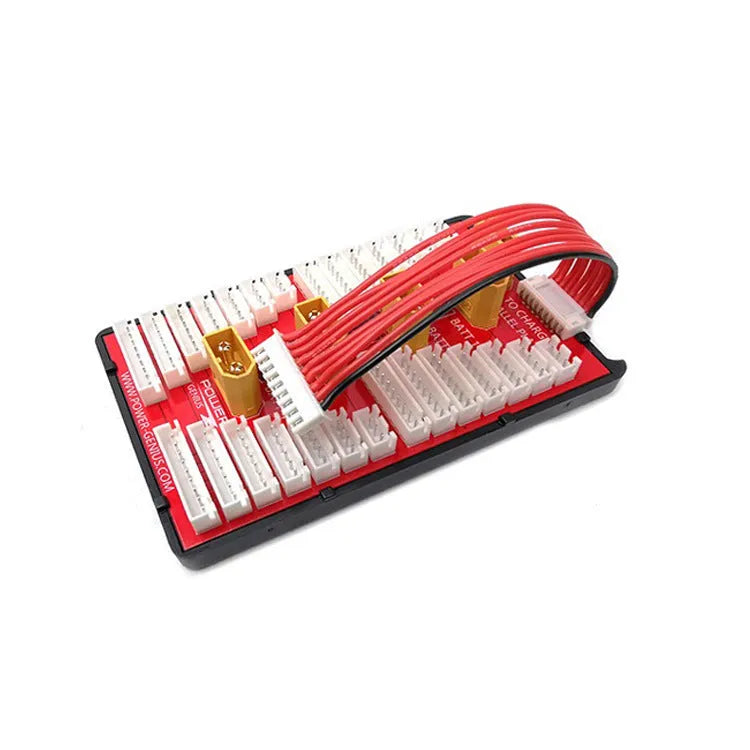

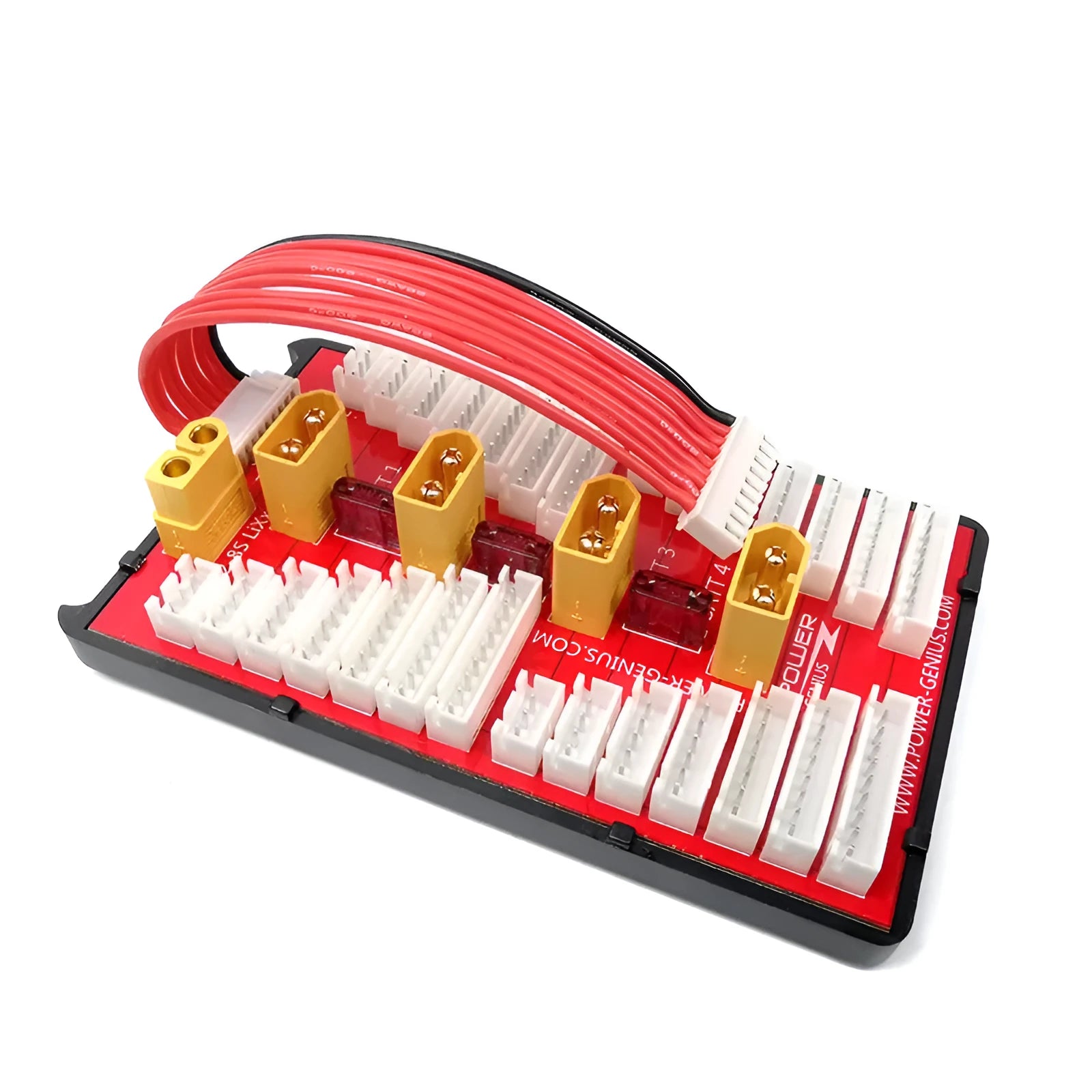

The core of the board is a printed circuit board (PCB) fabricated with thicker copper foil. This design choice supports a higher current capacity, allowing the board to manage a total charging current of up to 35 amperes. Electrical connections are made via high-quality gold-plated connectors, which help maintain a stable link with low electrical resistance. For the balance port connections, the board uses an 18AWG multi-strand silicone wire, known for its flexibility and ability to carry the required current.

Size and Practical Fit

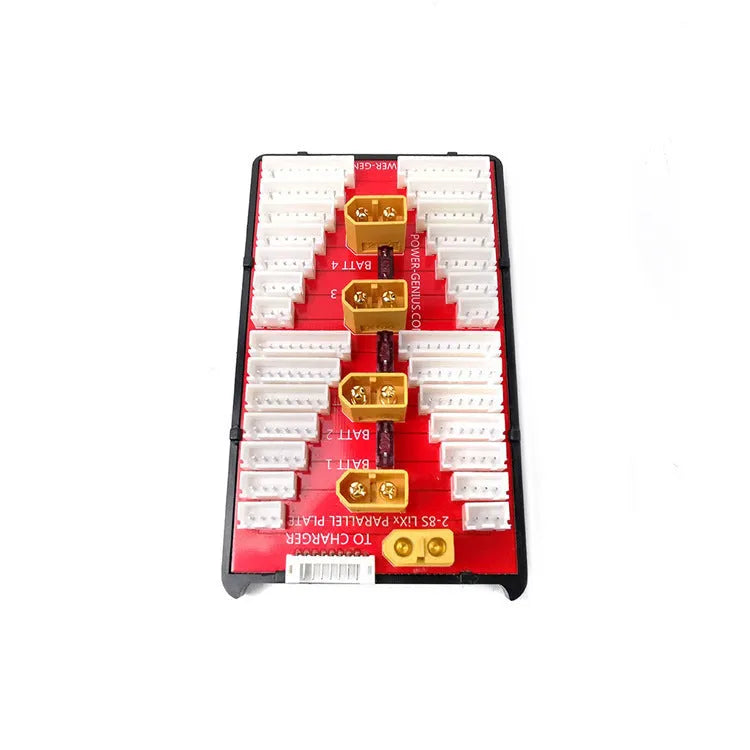

While specific physical dimensions are not detailed, the board is designed as a charging station adapter. It provides multiple connection points, clearly laid out for up to four battery packs. Each connection set accommodates both the main power discharge leads and the corresponding balance port plug. The inclusion of safety silicone caps for the T plug connectors is a practical touch, allowing unused ports to be covered to prevent accidental short circuits, which is a common concern in workshop environments.

Uses and Placement

This adapter serves a specific function within the RC charging ecosystem, bridging your compatible balance charger to multiple batteries.

Event or Professional Use

During RC racing events or extended flying sessions where multiple battery packs are cycled through quickly, charging downtime between runs is critical. This board enables pilots and drivers to charge several depleted packs in the time it might normally take to charge one. By connecting up to four packs that share the same cell configuration (e.g., all are 4S 5000mAh), the charger sees them as a single, larger-capacity battery. This process can be particularly useful for batteries that do not individually support high C-rate charging, as the cumulative current is distributed.

Everyday Home Use

For the hobbyist at home, it simplifies post-session maintenance. Instead of sequentially charging each pack—connecting, balancing, disconnecting, and repeating—you can connect all packs that require charging at once. This is especially convenient when storing batteries at a proper storage voltage, as multiple packs can be brought to the correct level simultaneously. It reduces active monitoring time and frees you up from the charging station.

Benefits and Buying Value

The value of this board lies in its time-saving efficiency and integrated protective measures for a common RC charging method.

Reuse and Low Maintenance

The board is a durable tool designed for repeated use. Its solid PCB construction and robust connectors are meant to withstand the plugging and unplugging cycles of regular hobby use. The safety fuses are replaceable components, protecting the more expensive board and your charger from damage in case of a significant voltage mismatch between connected batteries, which adds to its long-term utility.

Why Choose This Product

This parallel board offers a focused solution for a specific need. Its key differentiator is the inclusion of a 40A fuse between each battery group, a safety feature not found on all similar boards. The specification of 35A current capacity through thicker PCB copper also provides a clear performance parameter. For users who regularly charge multiple packs of the same specification, it delivers a tangible reduction in charging cycle time and manual intervention, making it a practical investment for streamlining your RC workflow.
