PWM DC Motor Governor with 4.5V to 35V Speed Regulation and 5A Output Current

This compact PWM DC motor governor provides precise speed control for DC motors operating between 4.5 volts and 35 volts DC. With a maximum output current of 5 amps and 90 watts of controllable power, it offers reliable motor regulation for various applications where adjustable rotation speed is required. The unit's 20kHz PWM frequency ensures smooth motor operation while its minimal 7 microamp standby current makes it efficient for continuous use scenarios. Measuring just 30 millimetres in length, 26 millimetres in width, and 14 millimetres in height (excluding the adjustment handle), this governor suits space-conscious installations requiring dependable motor control functionality.

Features and Construction

The DC motor governor incorporates PWM technology to regulate motor speed through duty cycle adjustment. Its construction focuses on providing reliable control within specified voltage and current parameters while maintaining compact dimensions for versatile installation.

Material and Build

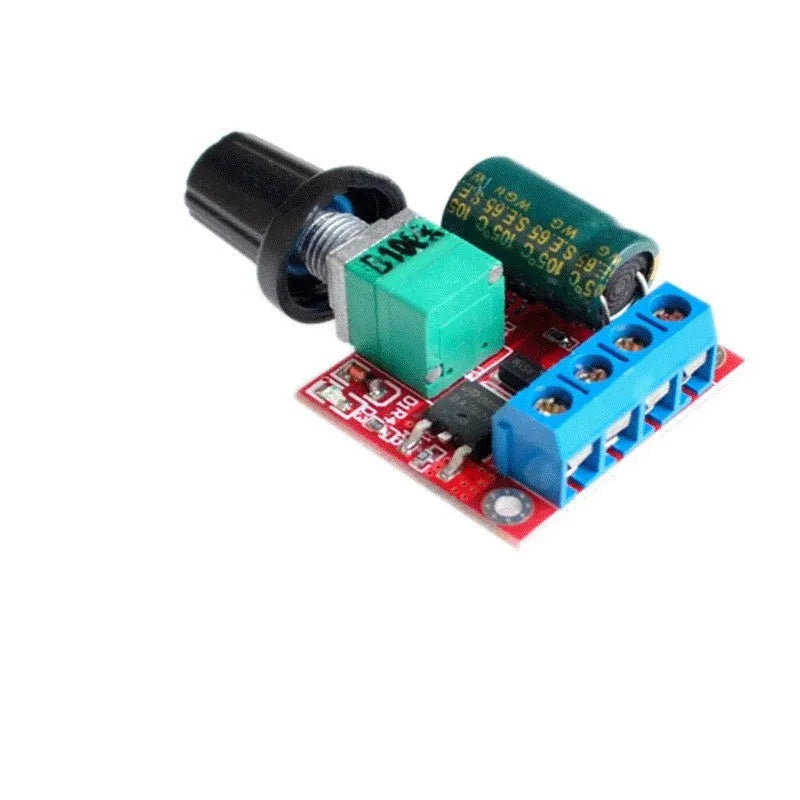

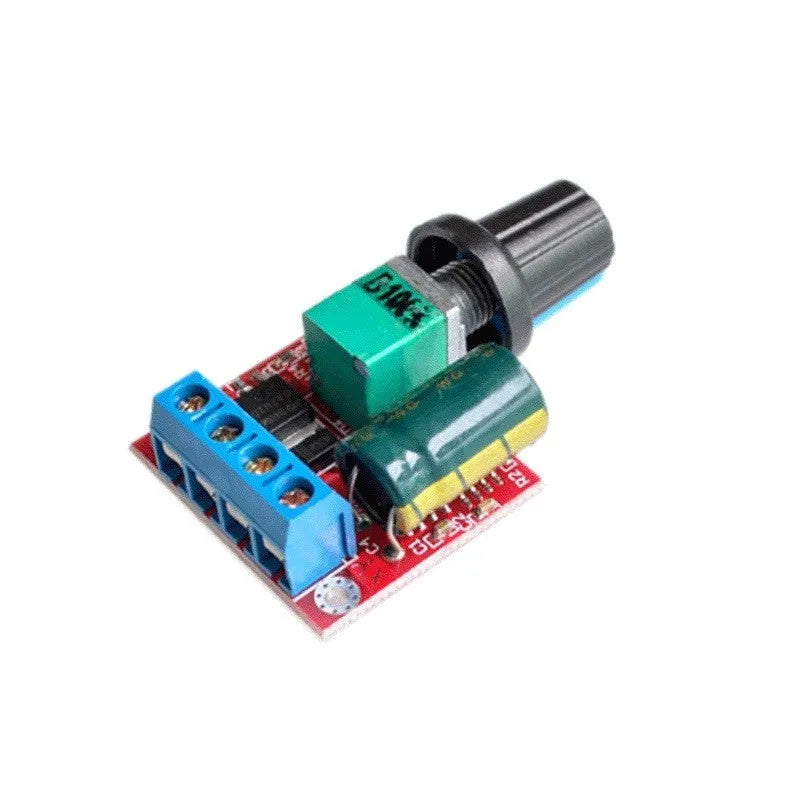

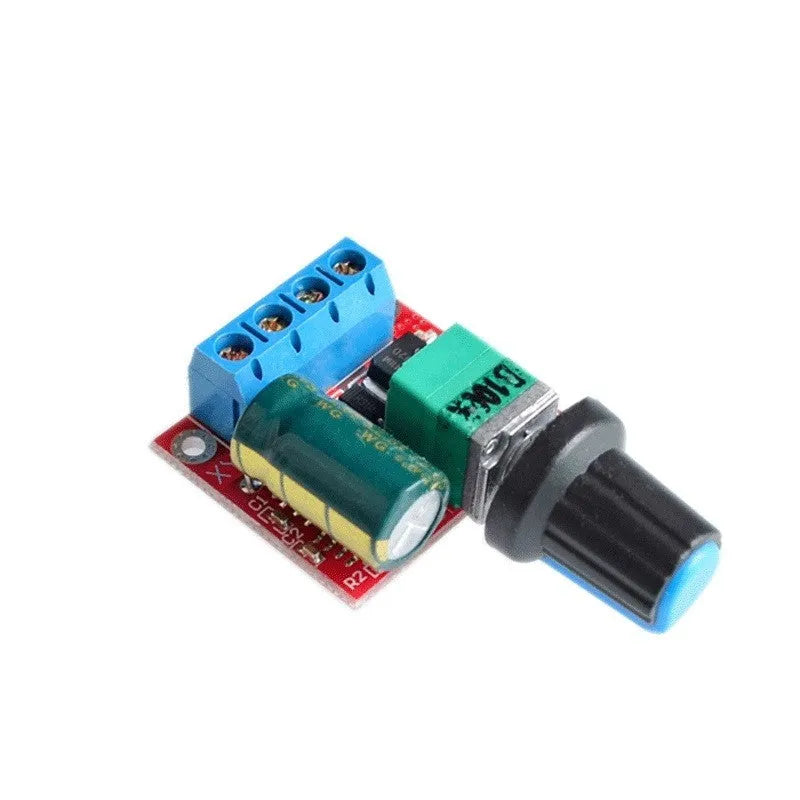

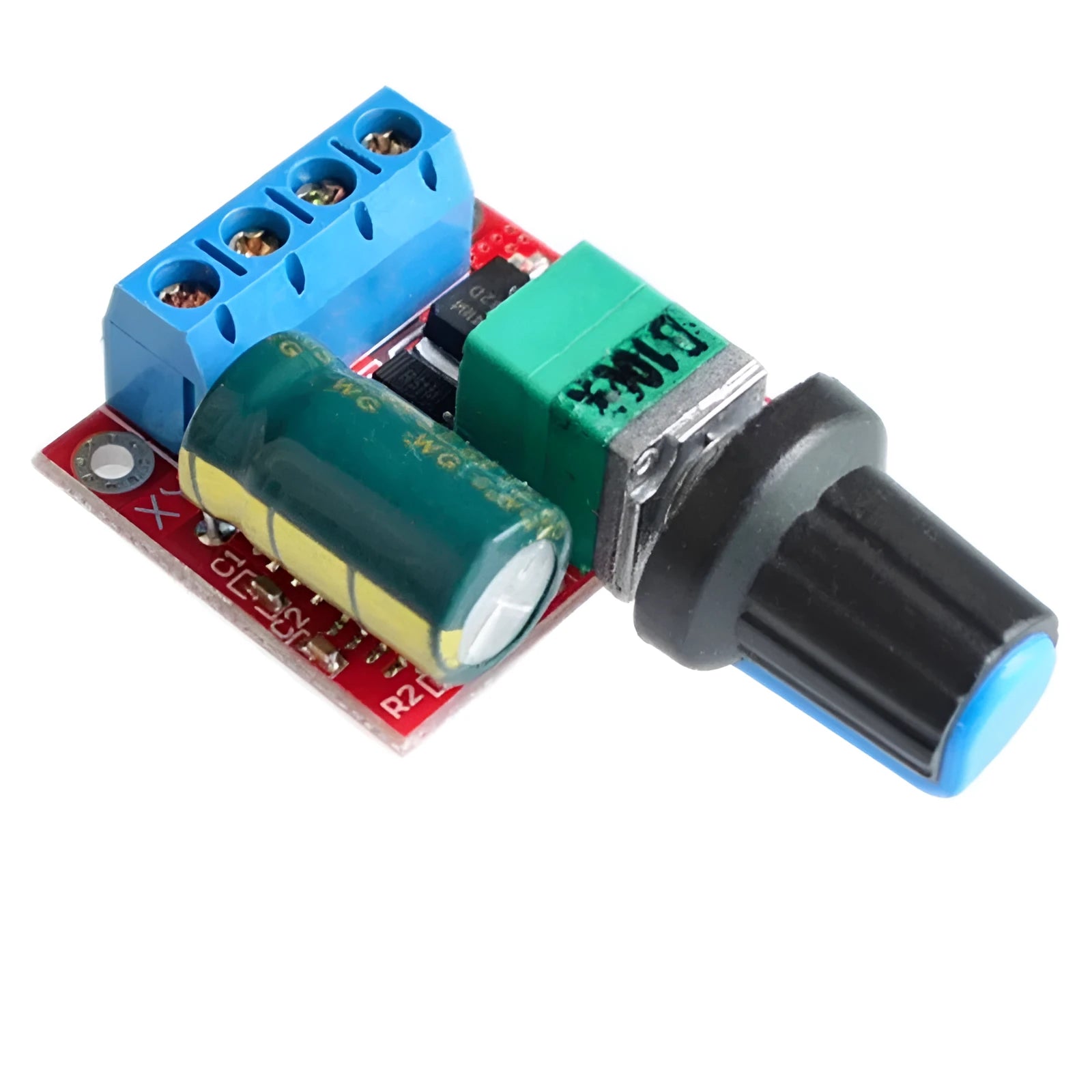

Built around electronic components including a PWM controller circuit, adjustable potentiometer, and connection terminals, this governor handles DC motor control without complex programming requirements. The unit's construction supports operation across its full 4.5V to 35V input range while delivering up to 5A output current. Its electronic design enables 20kHz PWM frequency operation with 1% to 100% duty cycle adjustment via the included potentiometer knob, allowing precise motor speed modification through straightforward manual control rather than digital interfaces.

Size and Practical Fit

With dimensions of 30mm long by 26mm wide by 14mm high (excluding the adjustment handle), this governor offers a compact footprint suitable for integration into existing systems or new builds where space is limited. The small form factor doesn't compromise functionality, still providing 90W motor control capability. This size makes it appropriate for applications ranging from hobbyist projects to commercial installations where physical space constraints exist alongside requirements for reliable motor speed regulation within the specified voltage and current parameters.

Uses and Placement

This PWM governor serves applications requiring controlled DC motor operation across its 4.5V to 35V range. Its combination of adjustable speed control and compact dimensions supports both professional and personal use cases where motor regulation is needed.

Event or Professional Use

In professional settings, this governor suits applications like exhibition displays, signage with moving elements, or demonstration equipment requiring variable-speed motor operation. The 5A output current supports motors powering rotating displays, adjustable lighting positions, or ventilation systems needing speed control. Its ability to handle up to 90W makes it suitable for commercial installations where reliable, adjustable motor control contributes to operational efficiency or presentation quality without requiring complex control systems.

Everyday Home Use

For home applications, this governor can regulate motors in DIY projects, workshop tools, or hobby equipment where adjustable speed enhances functionality. Examples include controlling fan speeds for ventilation systems, adjusting conveyor belt speeds in homemade sorting systems, or regulating motorised display rotation in collections or models. The straightforward potentiometer control allows users without technical expertise to adjust motor speeds easily, while the compact size facilitates integration into existing home projects or equipment.

Benefits and Buying Value

This DC motor governor provides practical advantages through its combination of adjustable control, electrical specifications, and physical dimensions. These benefits translate to value through application flexibility and straightforward operation.

Reuse and Low Maintenance

The governor's solid-state design with electronic components offers reliable operation without moving parts that might require regular maintenance. Its ability to work across a wide 4.5V to 35V range supports reuse across different projects or applications as needs change. The unit's construction focuses on providing consistent PWM control without complex calibration requirements, making it suitable for long-term use in applications where motor speed regulation remains a consistent requirement without demanding ongoing adjustment or specialist maintenance procedures.

Why Choose This Product

This PWM DC motor governor offers specific advantages through its combination of 5A output current, 4.5V to 35V operating range, and compact 30mm x 26mm x 14mm dimensions. The 20kHz PWM frequency provides smooth motor control while the adjustable potentiometer allows straightforward speed modification. These specifications make it suitable for applications where space constraints exist alongside requirements for reliable motor speed regulation within the stated voltage and current parameters, delivered through a control method that balances precision with user-friendly operation.
