1.3-inch IPS LCD Display Module: A 240x240 Full Colour Square Screen for Embedded Projects

This compact 1.3-inch display module delivers a full-colour IPS LCD screen solution designed for integration into microcontroller-based systems, single-board computer projects, and custom electronic interfaces. With its square 240x240 pixel format and adjustable display direction, it provides a versatile visual output for data visualisation, status indicators, or simple graphical user interfaces. The module's dual interface support through either an 8-bit parallel port or a 4-wire SPI connection offers flexibility in how you connect it to your chosen controller, making it adaptable to various project architectures and complexity levels.

Features and Construction

Built around a high-definition IPS colour screen, this display module offers improved colour reproduction and wider viewing angles compared to standard TFT LCD technologies. Its construction centres on the ST7789 driver chip, which manages the pixel data and communication protocol. The physical design results in a compact unit with clear practical dimensions for planning your enclosure or mounting solution.

Material and Build

The core visual component is an IPS LCD panel, which uses an in-plane switching technology to achieve its colour performance and viewing characteristics. This is paired with an ST7789 integrated circuit that serves as the display controller, handling the incoming data and converting it into signals for the screen matrix. The module is assembled on a printed circuit board that hosts the connector interface and necessary supporting circuitry, providing a ready-to-integrate unit rather than a bare panel.

Size and Practical Fit

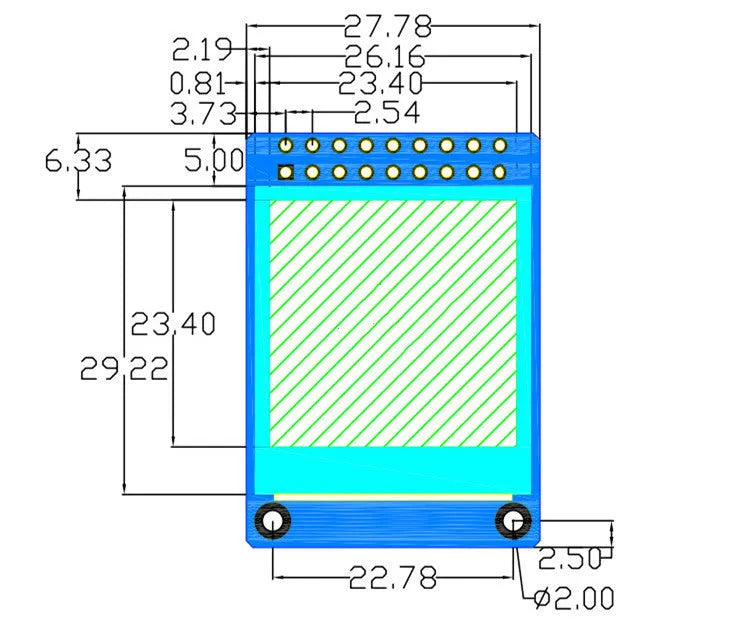

The active display area measures 23.4x23.4 mm, presenting a square viewing region suitable for symmetric graphics or data layouts. The entire module, including its PCB and connector, has a physical size of 27.78x39.22 mm, giving you precise dimensions for planning its placement within your project enclosure or on a prototype board. This compact footprint makes it suitable for applications where space is limited but a readable colour screen is required.

Uses and Placement

With its plug-in interface and standard driver chip, this display module fits into a range of electronic projects, from hobbyist builds to more developed prototype systems. Its technical specifications support both simple and more involved applications, provided the operating environment stays within its stated temperature range.

Event or Professional Use

For workshop tools, instrumentation panels, or portable devices, the display's 240x240 resolution can show numerical readouts, basic graphs, or status icons clearly. The wide viewing angle ensures visibility from different positions, which is useful in multi-user settings or when the device might be viewed from an angle. The ST7789 driver is well-documented and supported in various programming libraries, easing development for custom applications.

Everyday Home Use

In DIY smart home interfaces, weather stations, or clock projects, this screen can present information in a colourful, engaging way. The square format works well for circular gauges, centred text, or symmetrical layouts often found in home dashboard designs. Its plug-in nature means it can be connected and disconnected during prototyping without soldering directly to the display, which is advantageous for testing and iteration.

Benefits and Buying Value

The module's value lies in providing a complete, ready-to-use display solution that saves you from sourcing and combining individual components like the panel, driver, and connector separately. It represents a practical middle ground between buying a bare LCD panel with no interface and purchasing a fully assembled device with features you may not need.

Reuse and Low Maintenance

As a solid-state electronic module with no moving parts, its maintenance needs are minimal under normal operating conditions. The display can be reused across different projects if carefully disconnected, thanks to its connector-based interface. Ensuring it operates within the specified -20 to 70 degrees Celsius temperature range will support its ongoing reliability.

Why Choose This Product

This display module suits those who need a small, colour screen with a known driver chip and straightforward interfacing options. The inclusion of both parallel and SPI interfaces provides a choice based on your microcontroller's available pins and your preferred communication method. The 1.3-inch size with 240x240 resolution offers a balance between readable detail and compact physical presence, making it a practical selection for many embedded visual applications.
